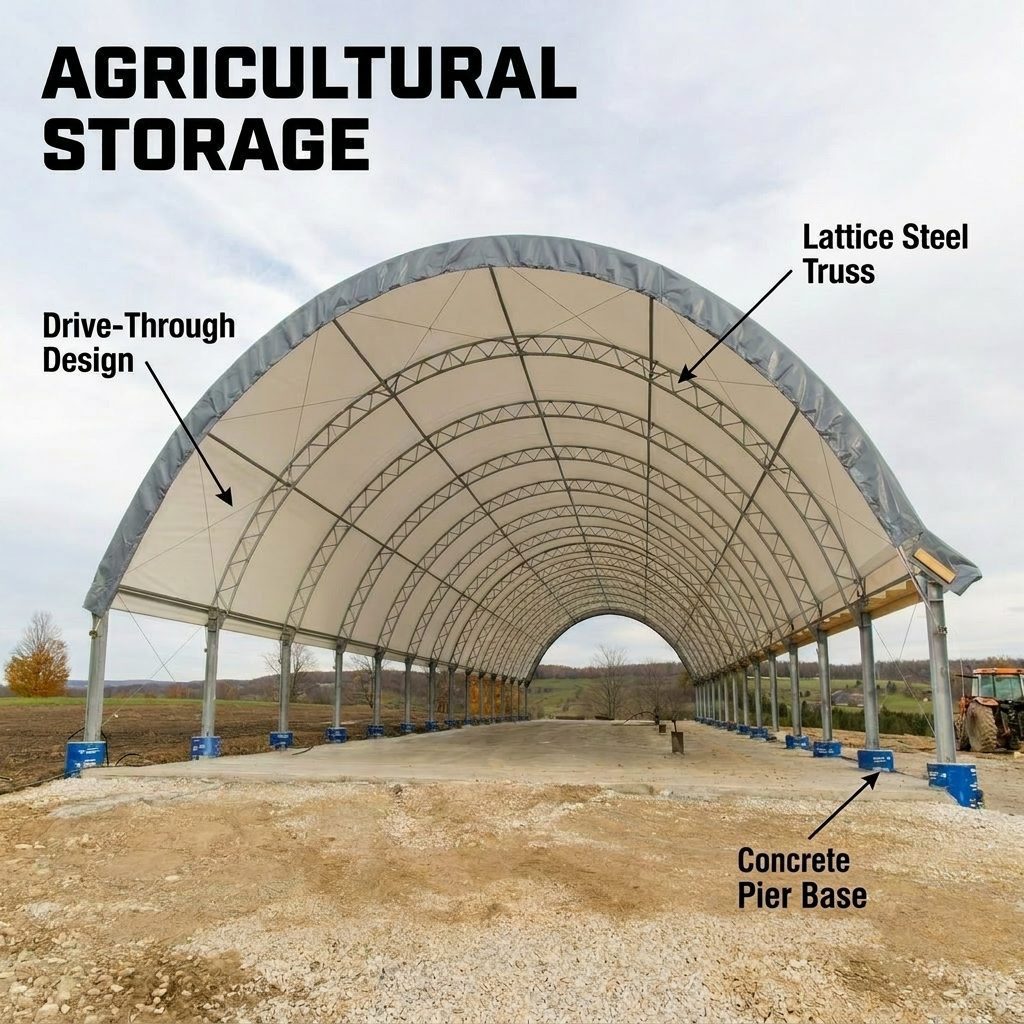

Heavy clear-span agricultural buildings for grain storage, dairy free-stalls, equestrian arenas, and farm machinery protection. Natural daylighting and superior passive airflow ventilation maintain dry, condensation-free conditions that improve animal welfare and crop preservation.
Heavy Hot-Dip Galvanized Steel Framework with Ripstop Architectural Fabric
Livestock Ventilation Barn
Dairy Free-Stall Barn

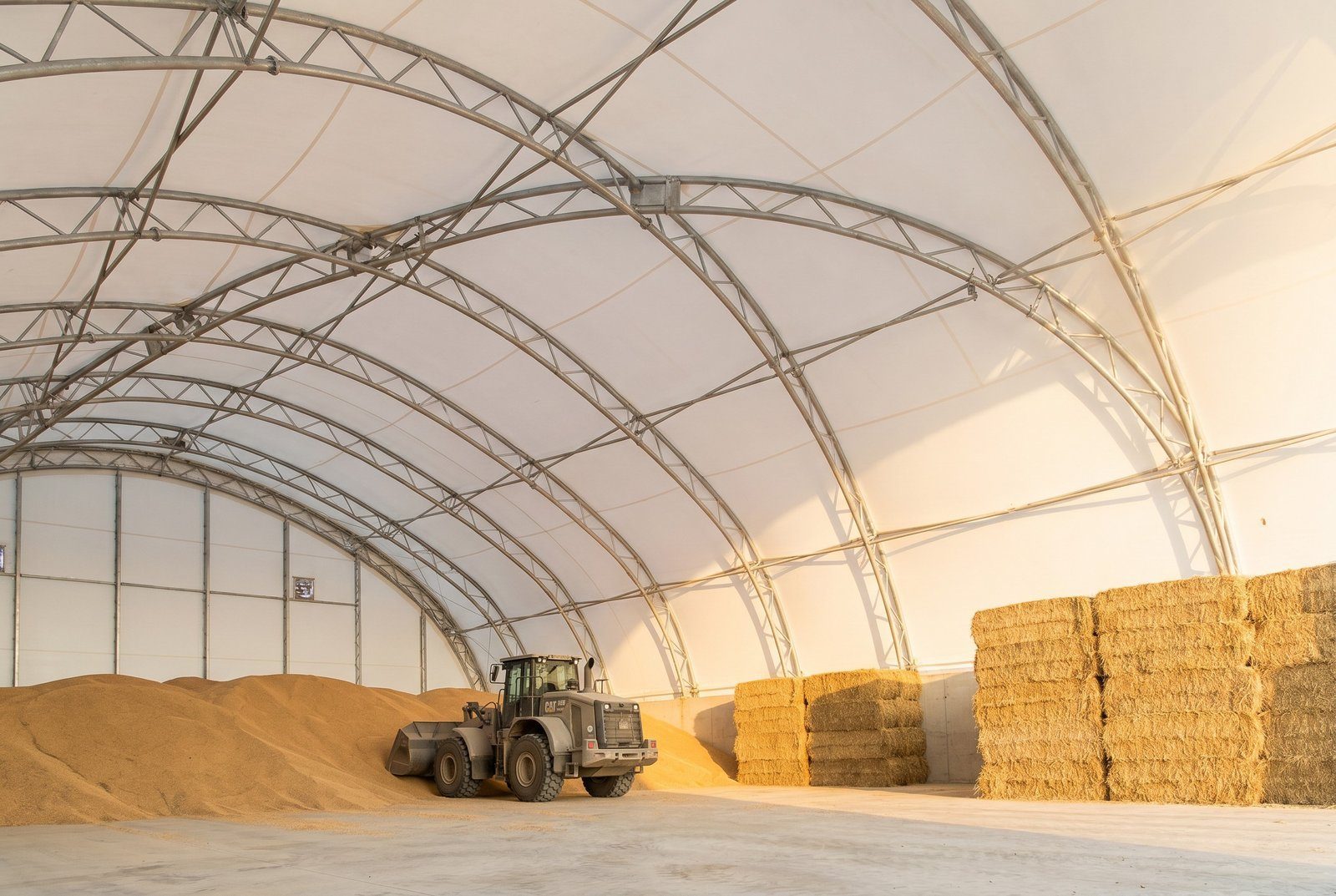

Bulk Grain Storage
60m
Max Agricultural Clear Span
Natural Light
Translucent Daylighting Roof
100%
Rust-Proof Galvanized Frame
20 yr
Fabric Life Expectancy
Better for Growth
Livestock Health & Asset Protection
Traditional dark barns stress animals and trap moisture. Champion fabric structures use translucent membranes that flood the interior with natural daylight, reducing electricity costs and improving animal welfare. High ceilings and customizable venting ensure a constant flow of fresh air.
Whether you need a calving barn or a hay storage depot, our buildings offer the fastest ROI in the industry.
☀
Natural Daylight
Translucent PVC eliminates the need for daytime lighting and improves animal health and mood.
🌬
Advanced Ventilation
Open ridge vents and side curtains keep livestock cool and dry even in peak summer heat.
Applications
Farm Infrastructure Solutions
Versatile agricultural buildings designed to handle the rigors of farm life.
01
Livestock Housing
Dairy, beef, or sheep housing with superior air quality, hygiene, and natural lighting.
02
Hay & Feed Storage
Keep hay dry and nutrient-rich with protection from rain, snow, and UV degradation.
03
Grain Storage
Bulk storage with reinforced side walls to handle heavy grain pressure during harvest.
04
Machinery Sheds
Clear span designs for easy maneuvering of combines, tractors, and planters.
05
Compost Facilities
Corrosion-proof frames ideal for high-humidity manure and compost management.
06
Equestrian Arenas
Quiet, light-filled environments for horse training, riding, and community events.
Products
Recommended Structures
Choose the building that best fits your farm's scale and storage requirements.
Wider spans up to 60 m for large-scale warehouse needs or commercial dairy operations.
Technical Specs
Typical Agricultural Sizes
Span Capability
9 m – 60 m
Center Height
4.5 m – 15 m
Fabric Type
22 oz (750 gsm) Translucent PVC up to 43 oz (1450 gsm) PVDF
Foundation Options
Concrete Pad, Helical Piles, Wood Posts, or Asphalt
Thermal Performance
Insulation liner and specialized ventilation available
Wind Rating
Engineered to local site codes
30%
Energy Savings
2x
Faster Install
Zero
Rust on PVC
15+yr
Fabric Life
FAQ
Agricultural Building FAQ
Actually, the white membrane reflects a high percentage of solar radiation. Combined with ridge ventilation, the interior typically stays 10 °C cooler than the outside in summer, reducing heat stress for livestock.
Yes. Every Champion agricultural building is engineered to your local snow load. The curved roof profile also helps snow slide off easily, preventing dangerous accumulation during winter storms.
Our high-quality PVC / PVDF membranes (up to 1450 gsm) typically have a service life of 15-30 years and are easily replaced at a fraction of the cost of a new structure. The steel frame is designed for 30+ years.
Yes, we provide detailed installation manuals and technical support. Many farmers choose to install their own hoop barns with a small crew to save on construction costs.
Challenges
Key Challenges in Agriculture
01
Air Quality
Poor ventilation in traditional barns leads to respiratory issues and heat stress for livestock, reducing milk and meat yields.
02
UV Degradation
Direct exposure to sunlight and moisture can quickly degrade hay and grain quality, leading to significant nutritional loss.
03
Construction Time
Agricultural operations need storage quickly to match harvest cycles, but traditional metal sheds can take months to permit and build.
Agricultural buildings do not share one operating condition. Grain storage requires moisture management and loader access; livestock housing requires clean airflow, daylight and manure-route planning; machinery storage prioritizes door width, turning radius and economical covered volume. Each Spanbest layout is developed around the exact agricultural use.
Industry Design Focus
Grain and commodity storage
Flat-storage geometry is coordinated with push walls, conveyors, aeration and front-end loader movement. Condensation risk and ventilation openings are considered before the envelope is selected.
Industry Design Focus
Livestock welfare
Ridge and sidewall airflow, solar gain, daylight, bedding areas and manure routes are planned together. The goal is a dry interior without drafts through occupied animal zones.
Industry Design Focus
Machinery and hay protection
Large doors, clear internal circulation and practical eave height protect combines, tractors and baled products while keeping loading and daily retrieval efficient.
Professional Insight
Why agricultural ventilation starts with the stored product or animal — not a standard vent size
The moisture source inside a grain store is different from the moisture source inside a livestock barn. Grain releases residual moisture and can form condensation beneath a cool roof; livestock add respiration, manure moisture and heat. A reliable design identifies the source, the seasonal operating pattern and the desired airflow path before openings are sized.
Spanbest records these operating assumptions in the project design basis. Ridge openings, side curtains, end-wall louvers and mechanical assistance can then be coordinated with the structure. This prevents a generic enclosure from being sold as a complete agricultural solution.
