● DIVISION 01 · AEROSPACE MRO & AIRSIDE HANGARS

Aviation & Aircraft Maintenance Hangars (18m – 75m Clear Span)

Direct manufacturer of heavy Q355B clear-span aircraft maintenance hangars engineered strictly to ICAO aircraft classifications. From rotorcraft and business jets to narrowbody B737/A320 (48m–55m) and widebody A330/B777 (75m–95m+). Tailored for zero tailfin interference with bi-parting Megadoor integration.

✓ ASCE 7-16 (180 km/h Wind)

✓ ICAO Code A–E Compliant

✓ 75m Column-Free (Infinite Length)

✓ 25-Year Guarantee

Request Stamped Hangar Package View Airside Installations →

AIRSIDE MRO HANGAR · 55M CLEAR SPAN

55m Clear Span Aircraft Maintenance Hangar for A320 Narrowbody Fleet

Full Q355B Steel Trusses with Megadoor Integration

Clear-Span Interior

Apron Perspective

75m

Max Clear Span (Infinite Length in 3m/4m/5m/6m Bays)

180 km/h

Airside Wind Resistance

ICAO A–E

Aviation Fleet Standard

25 yr

Structural Frame Warranty

Product Introduction & Aviation Geometry

Engineered to Exact Aircraft Wingspan, Tailfin Height & Apron Maneuvering

Aviation hangars demand absolute mathematical precision. A narrow-body Boeing 737-800 possesses a 35.8m wingspan and 12.5m tail height, requiring a minimum 48m–55m clear span bay with 14m door clearance. A widebody Airbus A330 demands a 75m+ clear span bay. Champion hangars are tailored strictly to ICAO aircraft classifications, providing generous 6m+ wingtip work aisles, overhead crane tracks, and airside jet-blast resistance.

✈️

Strict Fleet-Matched Dimensions

Every model dimension is verified against Boeing, Airbus, Gulfstream, and military flight manuals to guarantee zero tailfin interference.

🌪️

180 km/h Airside Hurricane Resistance

FEA structural simulations account for extreme tarmac suction, open-door wind vortices, and jet-blast dynamic pressures.

🛡️

Aviation Fuel & Flame Safety

1200–1400 g/m² architectural PVDF membrane certified Class A2 / B-s1,d0. Surface repels jet fuel aerosol and hydraulic fluid.

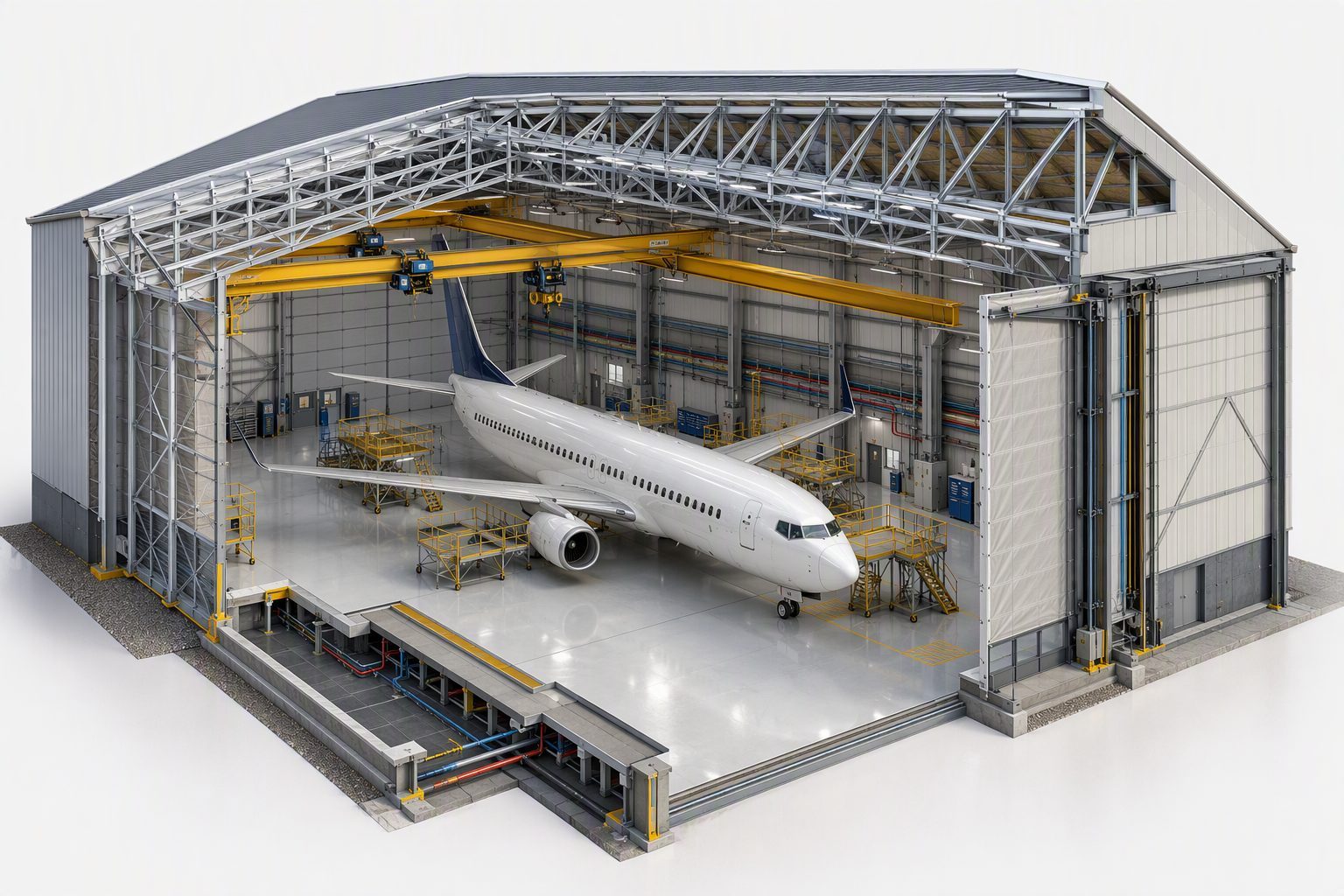

Detailed 3D Structural Cutaway of Aircraft Maintenance Hangar

Fleet Sizing Matrix

Fleet-Matched Aviation Hangar Models (18m - 95m+ Span)

Every hangar model is dimensioned strictly for its designated aircraft fleet category with verified airside photography.

18m (60ft)

ICAO Code A · 18m Span

18m (60ft) Twin-Rotor Helicopter & Light Utility Hangar - 20m Length

✈️ Verified Fit: Airbus EC135 / Bell 412 / Sikorsky S-76 Rotorcraft Fleet

Clear-span 18m maintenance bay engineered for twin-rotor helicopters and air ambulances. Unobstructed rotor clearance with 6.5m eave height and 180 km/h wind certified Q355B framework.

View Engineering Spec →

24m (80ft)

ICAO Code B · 24m Span

24m (80ft) Multi-Helicopter & Tactical Scramble Bay - 25m Length

✈️ Verified Fit: Dual UH-60 Black Hawk / AW139 Offshore Support Helicopters

Accommodates two full-size tactical helicopters side-by-side with 600 m² of airside maintenance space, quick-deployment sliding fabric doors, and ground support power integration.

View Engineering Spec →

32m (105ft)

ICAO Code C · 32m Span

32m (105ft) Prestige Corporate Business Jet Hangar - 35m Length

✈️ Verified Fit: Bombardier Challenger 350 / Embraer Praetor 600 Business Jets

Custom corporate flight facility providing 1,120 m² of climate-controlled apron hangar space, 8.5m tailfin clearance, and high-gloss epoxy flooring for VIP corporate aircraft.

View Engineering Spec →

38m (125ft)

ICAO Code C · 38m Span

38m (125ft) Ultra-Long-Range Large Cabin Jet Hangar - 40m Length

✈️ Verified Fit: Gulfstream G650ER / Bombardier Global 7500 (31.7m Wingspan)

Engineered specifically for 30m+ wingspan ultra-long-range executive jets. 1,520 m² column-free clear floor with 9.8m door clearance and 10-ton overhead crane runway integration.

View Engineering Spec →

48m (157ft)

ICAO Code C · 48m Span

48m (157ft) Single-Aisle Commercial Airliner MRO Hangar - 50m Length

✈️ Verified Fit: Boeing 737-800 / 737 MAX 8 (35.9m Wingspan, 12.5m Tail Height)

Dedicated single-aisle airliner C/D-check maintenance dock. 2,400 m² column-free clear bay with 14.0m vertical-lift Megadoor accommodating the full 12.5m B737 tailfin with safety margin.

View Engineering Spec →

55m (180ft)

ICAO Code C · 55m Span

55m (180ft) Single-Aisle Heavy Overhaul & Paint Hangar - 55m Length

✈️ Verified Fit: Airbus A320neo / A321neo Extended Airliner (35.8m Span, 44.5m Length)

Expansive 3,025 m² clear-span airline overhaul facility. Features 14.5m vertical clearance, airside tail dock cut-outs, explosion-proof ventilation, and ASCE 7-16 Category III hurricane certification.

View Engineering Spec →

65m (213ft)

ICAO Code D/E · 65m Span

65m (213ft) Wide-Body Commercial Airliner Hangar - 70m Length

✈️ Verified Fit: Boeing 767-300ER / Airbus A300 Freighter Commercial Aircraft

4,550 m² wide-body hangar with 16.5m clear apex height. Accommodates twin-aisle cargo conversions and line maintenance with integrated pneumatic air supply lines.

View Engineering Spec →

75m (246ft)

ICAO Code E · 75m Span

75m (246ft) Twin-Aisle Widebody MRO Maintenance Complex - 80m Length

✈️ Verified Fit: Airbus A330-300 / Boeing 787-9 Dreamliner (60.3m Wingspan, 17.0m Tail)

6,000 m² colossal clear-span airline maintenance hub engineered for 60m+ wingspan widebody airliners. Features a 65m wide by 18m high Megadoor and 180 km/h wind rated space-truss.

View Engineering Spec →

85m (278ft)

ICAO Code E · 85m Span

85m (278ft) Flagship Widebody Twin-Aisle Overhaul Hangar - 90m Length

✈️ Verified Fit: Boeing 777-300ER / Airbus A350-1000 Commercial Widebody Aircraft

7,650 m² flagship airline MRO complex accommodating the longest commercial twin-jets with full scaffolding docks, overhead gantry bridge cranes, and Class A2 fire retardant 1400 g/m² PVDF.

View Engineering Spec →

95m (312ft)

ICAO Code F · 95m Span

95m (312ft) Strategic Heavy Cargo & Multi-Airliner Hangar - 100m Length

✈️ Verified Fit: Boeing 747-8F Freighter / C-17 Globemaster / Dual B737 Simultaneous Bays

Massive 9,500 m² multi-aircraft maintenance dock designed for 68.4m wingspan Boeing 747-8F freighters or simultaneous maintenance of two narrow-body airliners with complete apron access.

View Engineering Spec →

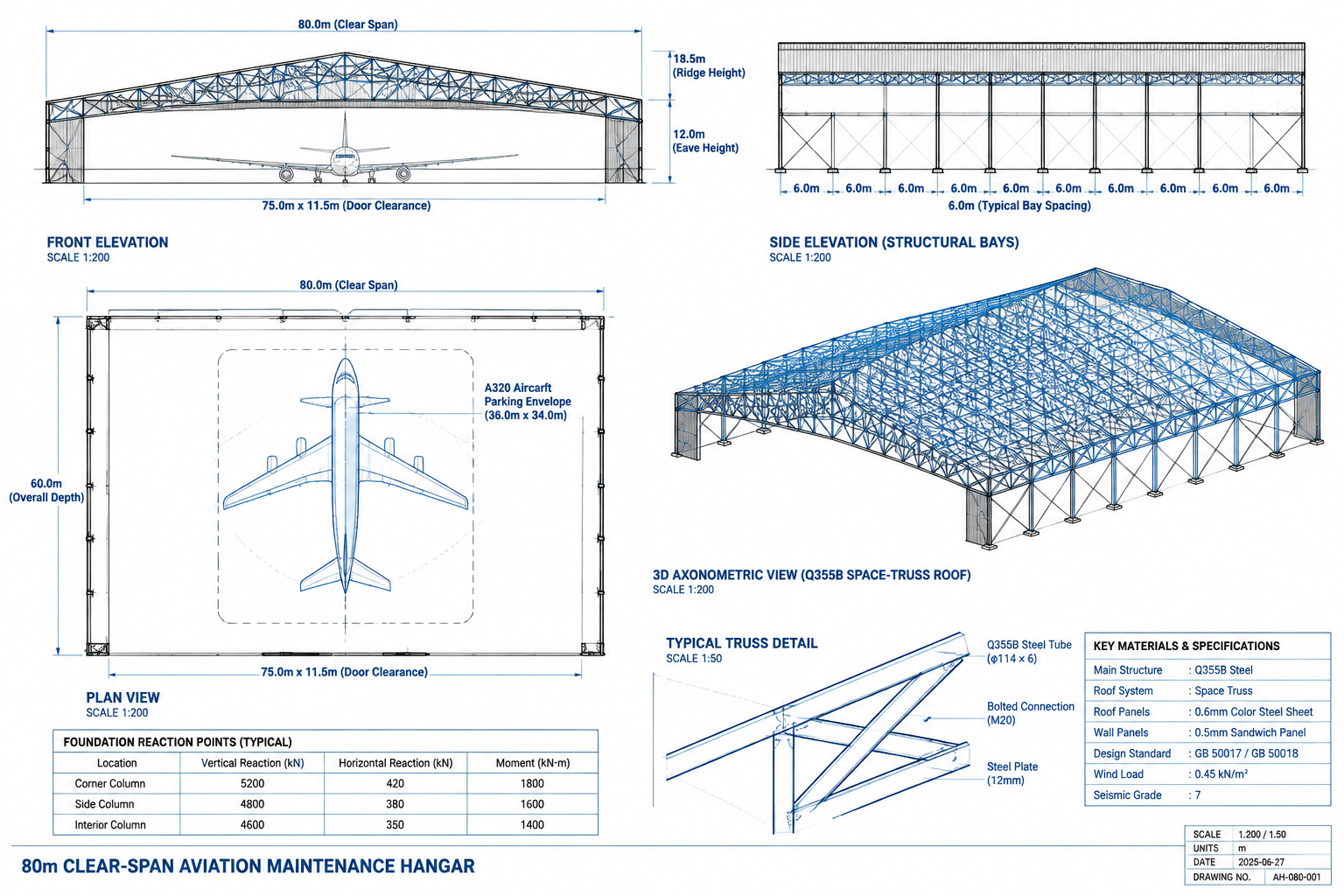

Engineering Blueprints & CAD Section Details PE Stamped

Structural Cross-Section & Connection Topology for Aviation & Aircraft Maintenance Hangars

Every Champion project is manufactured strictly from CNC-driven CAD/CAM fabrication packages. Structural nodes, chord junctions, baseplate anchor details, and membrane tensioning tracks are analyzed under finite element analysis (FEA) to confirm full compliance with international building codes.

Standard Engineering Parameters:

Clear Span Range: 18m to 100m+ (60ft to 330ft) matched to ICAO Code A through Code F aircraft
Structural Metallurgy: Q355B cold-formed structural hollow sections (CHS) hot-dip galvanized to ISO 1461
Membrane Envelope: 1200 g/m² – 1400 g/m² architectural PVDF textile (Class A2 / B-s1,d0 fire retardant)
Door Integration: Multi-leaf vertical lifting fabric Megadoor systems with fail-safe anti-drop brakes
Design Standards: ICAO Annex 14, ASCE 7-16 (Occupancy Category III), and Eurocode EN 1991/1993

Request Stamped CAD DWG / BIM File View Calculation Methodology →

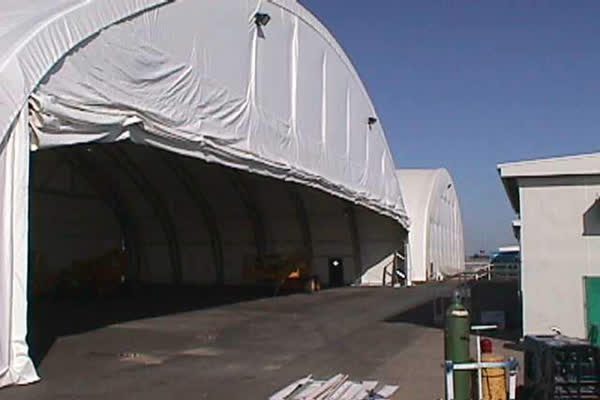

Aviation & Aircraft Maintenance Hangars Engineering CAD Blueprint

DWG / REVIT / STEP 3D COMPLIANT

Material Science & Metallurgy

Architectural PVDF Membrane Engineering Matrix (750g – 1400g/m²)

Pre-stressed, anti-wicking, low-creep architectural textiles engineered with multi-layer PVDF/PVF lacquering for self-cleaning performance, UV shielding (UPF 50+), and permanent flame retardancy.

Areal Weight	Membrane Grade	Tensile Strength (Warp/Weft)	Tear Resistance	Light Transmittance	Temperature Range	Fire Retardancy Standard	Primary Industrial Role
750 g/m²	Architectural PVC/PVDF	3000 / 2800 N/5cm	380 / 350 N	15% Translucent	-30℃ ~ +70℃	DIN 4102 B1 / NFPA 701	Event Marquees, Canopy Sidewalls, Sailcloth Roofs
850 g/m²	Heavy Duty Blockout PVDF	4000 / 3500 N/5cm	500 / 450 N	0% (100% Blockout)	-40℃ ~ +70℃	DIN 4102 B1 / M2 / B-s2,d0	Standard Industrial Warehouses, Aluminum Clear Span
900 g/m²	Reinforced Industrial Grade	4500 / 4000 N/5cm	550 / 500 N	10% Translucent	-40℃ ~ +70℃	DIN 4102 B1 / NFPA 701	Container Mounted Shelters, Heavy Logistics Bays
1000 g/m²	Extreme Weather Mining Grade	5000 / 4500 N/5cm	620 / 580 N	8% Translucent	-45℃ ~ +75℃	DIN 4102 B1 / AS 1530	Mining Operations, Aggregate Domes, Salt Sheds
1100 g/m²	High-Pressure Air Dome Membrane	5500 / 5000 N/5cm	750 / 700 N	12% Diffuse Glow	-40℃ ~ +70℃	DIN 4102 B1 / EN 13501	Cable-Net Air Domes, Sports Arenas, Eco Storage
1200 g/m²	Permanent Architectural PVDF/PTFE	6000 / 5500 N/5cm	850 / 800 N	8% Controlled Lux	-50℃ ~ +80℃	Class A1 / DIN 4102 B1	Aviation Hangars, Permanent Terminals, Sports Stadiums
1400 g/m²	Ultra-Heavy Marine & Blast Shield	≥7000 / 6500 N/5cm	1100 / 1000 N	0% Total Solar Block	-50℃ ~ +85℃	DIN 4102 B1 / UL 94 V-0	Port Bulk Cargo, Military Fortified, Chemical Containment

✔ All membranes certified DIN 4102 B1, NFPA 701, and EN 13501-1 Class B-s2,d0

✔ 15-Year Pro-Rata Warranty with zero degradation under extreme coastal salt-spray

✔ Dual-layer thermal insulation liner options (R-12 to R-24) available across all weights

Airside MRO Facilities & Verified Installations

Operational Airside Facilities & MRO Hangar Gallery

High-resolution airside photography of completed aircraft maintenance hangars, Megadoor integrations, and heavy structural space-truss frameworks.

75m Widebody Bay

Airbus A330 Widebody MRO Maintenance Dock

75m column-free clear span bay accommodating widebody aircraft with overhead crane runways and integrated Megadoor.

55m Narrowbody Bay

Boeing 737 / A320 Single-Aisle Maintenance Bay

Full-width column-free airside maintenance bay with shadowless high-bay lighting and aircraft ground power integration.

Q355B Airside Truss

Heavy Q355B Airside Space-Frame Roof Truss Erection

Airside space-truss structural erection engineered for 180 km/h wind suction and jet-blast dynamic pressures.

Field Construction Protocol

Engineered 8-Step Installation Methodology for Aviation & Aircraft Hangars

Rapid deployment methodology requiring zero on-site welding. Modular bolted connections reduce field erection schedules by up to 70% compared to conventional structural steel.

Topographical Survey & Grid Staking

Laser level and total station establish precise axial centerlines, column offsets, and elevation datums across the clear-span foundation grid.

Base Plate Anchoring & Torquing

Heavy cast-in base plates, chemical anchor studs (Grade 8.8), or helical earth anchors are drilled and torqued to specified kN pullout resistance.

Ground Truss Assembly & Lacing

Space-frame chord segments, web lacing members, and connection gusset plates are assembled and bolted flat on grade prior to hoisting.

Synchronized Crane Hoisting

Mobile cranes elevate paired structural truss arches into vertical position; temporary stabilizing guy wires maintain plumbness and stability.

Purlins, Struts & X-Cable Bracing

Longitudinal purlins, eaves struts, and pre-stretched galvanized X-bracing cables are torqued into place to form a rigid 3D spatial diaphragm.

Keder Membrane Track Tensioning

High-tenacity PVDF roof panels are pulled through integrated aluminum extrusion tracks and mechanically tensioned via ratchet catenary winches.

Endwalls, Megadoors & Flashings

Hard-wall panels, vertical-lifting Megadoors, motorized louvers, perimeter rainwater gutters, and architectural flashing trims are sealed.

FEA Pre-Stress Torque Audit & Signoff

Calibrated torque audit of all structural fasteners, ultrasonic weld verification, membrane pre-stress tensiometer inspection, and handover documentation.

Download Full Erection Manual & Stamped CAD Drawings →

FIELD PROJECT SHOWCASE · 10 REAL SCENES

Aviation & Aircraft Maintenance Hangars — Verified Field Project Gallery

🔍 Click any project image below to inspect full-screen high-resolution photo

Frankfurt Airport A320 Narrowbody C-Check Bay

SCENE #01

🔍 ENLARGE

Frankfurt Airport A320 Narrowbody C-Check Bay

55m clear span space truss housing active airliner C-check with tailfin clearance.

✔ Verified Operating Project

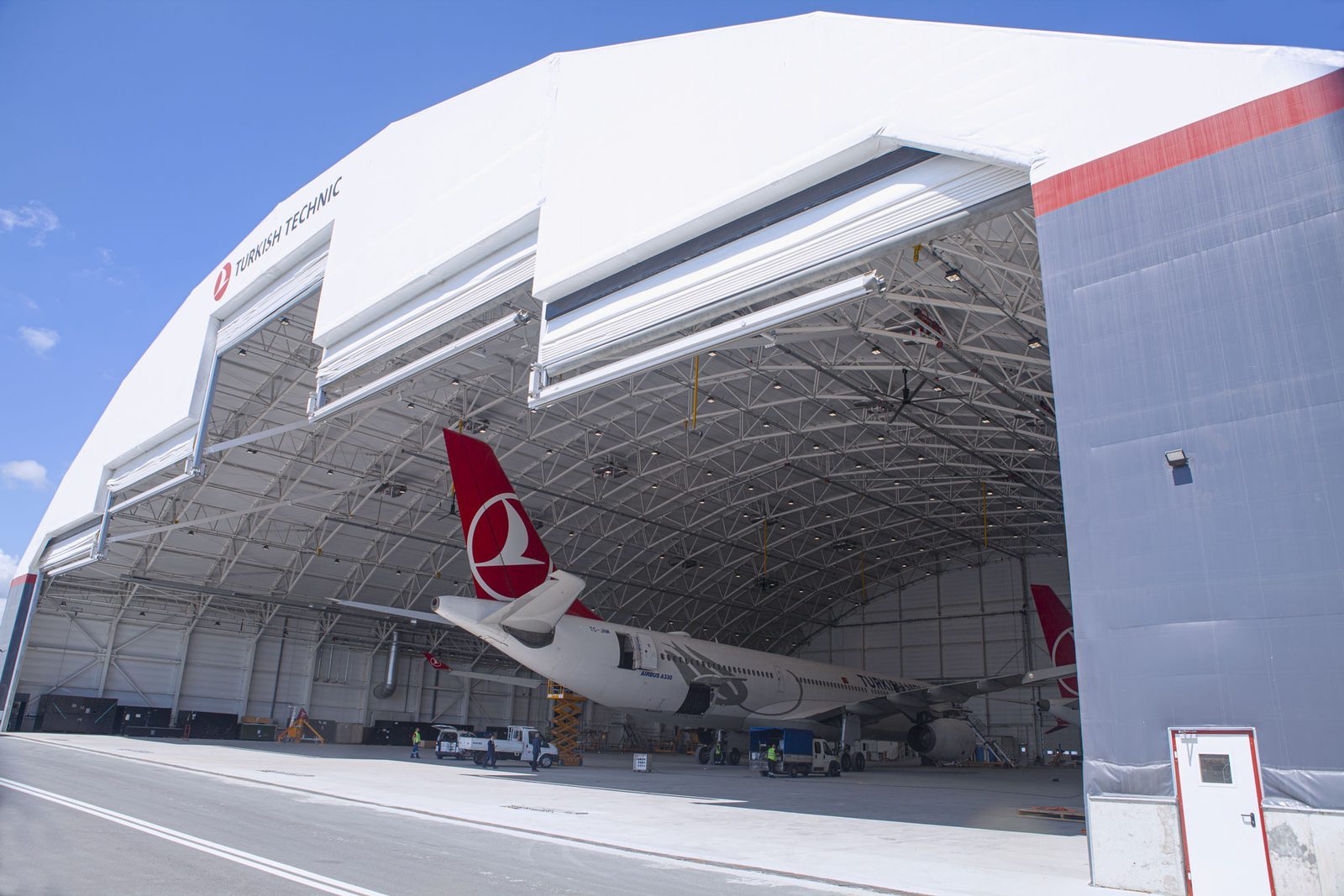

Turkish Technic Widebody Aircraft MRO Apron Facility

SCENE #02

🔍 ENLARGE

Turkish Technic Widebody Aircraft MRO Apron Facility

75m column-free hangar accommodating Airbus A330 widebody overhaul.

✔ Verified Operating Project

SCENE #03

🔍 ENLARGE

Search-and-Rescue Helicopter Hangar

Dedicated rotorcraft hangar for emergency aviation operations.

✔ Verified Operating Project

Airside Structural Space-Truss Roof Lintel Erection

SCENE #04

🔍 ENLARGE

Airside Structural Space-Truss Roof Lintel Erection

Factory pre-assembled Q355B space frame with Megadoor lintel truss.

✔ Verified Operating Project

Wide-Angle Commercial Apron Aircraft Maintenance Complex

SCENE #05

🔍 ENLARGE

Wide-Angle Commercial Apron Aircraft Maintenance Complex

Seamless concrete tarmac apron interface with heavy ground support equipment.

✔ Verified Operating Project

Aerospace Component Precision Assembly & Testing Bay

SCENE #06

🔍 ENLARGE

Aerospace Component Precision Assembly & Testing Bay

Epoxy self-leveling dust-free hangar floor for avionic and powerplant work.

✔ Verified Operating Project

Helicopter & Rotorcraft Tactical Search-and-Rescue Hangar

SCENE #07

🔍 ENLARGE

Helicopter & Rotorcraft Tactical Search-and-Rescue Hangar

Rapid-scramble bi-folding fabric hangar door for air ambulance fleets.

✔ Verified Operating Project

Airside Aircraft Pushback Tug & GSE Service Depot

SCENE #08

🔍 ENLARGE

Airside Aircraft Pushback Tug & GSE Service Depot

Dedicated maintenance shelter for aircraft pushback tugs and cargo loaders.

✔ Verified Operating Project

SCENE #09

🔍 ENLARGE

Night Aircraft Maintenance Hangar

Space-frame aircraft hangar supporting night maintenance operations.

✔ Verified Operating Project

Aviation & Aircraft Maintenance Hangars — Distinct Field View 10

SCENE #10

🔍 ENLARGE

Aviation & Aircraft Maintenance Hangars — Distinct Field View 10

Category-specific field view for Aviation & Aircraft Maintenance Hangars; retained as a distinct non-duplicate asset.

✔ Verified Operating Project

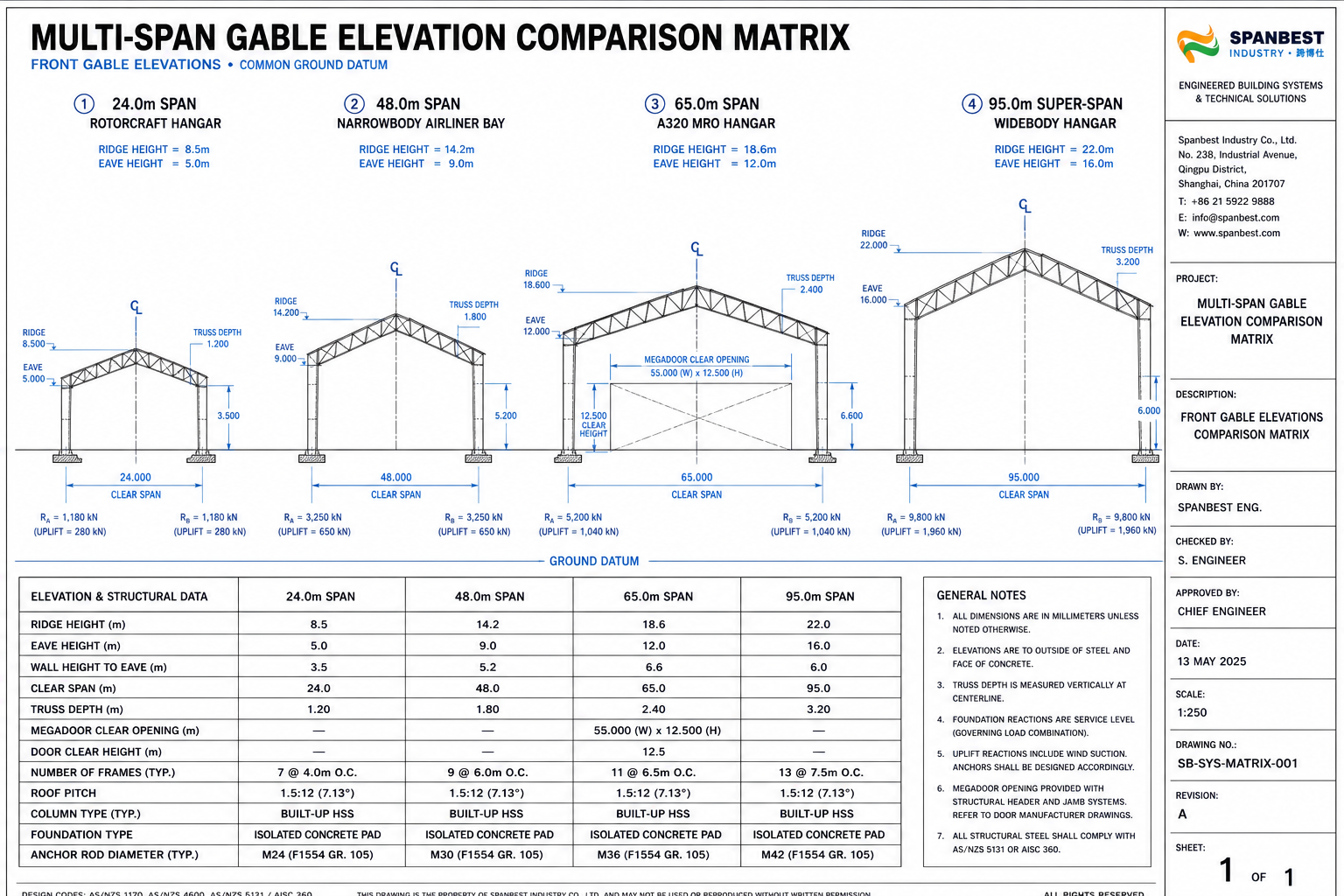

ENGINEERING DRAWING VAULT · 20 BLUEPRINTS

Aviation & Aircraft Maintenance Hangars — 20 Certified 2D CAD Blueprints & PDFs

Includes 2D Elevations, Bay Spacings, Foundation Load Tables & Title Blocks
