Industrial & Commercial Solar Carports (Single & Double Cantilever)

Engineered from heavy Q355B hot-dip galvanized steel and 6082-T6 extruded aluminum. Custom cantilever and portal spans supporting up to 650W commercial bifacial PV modules with waterproof gasket purlins, integrated cable trays, and EV charging station integration.

✓ Single & Double Cantilever Design

✓ 100% Watertight Gasket Purlins

✓ Integrated EV Fast-Charge

✓ ASCE 7-16 Structural PE Stamped

Request Solar Carport Engineering View Commercial Carports →

COMMERCIAL FLEET CANOPY · 120-BAY

Commercial Solar Carport Canopy with Integrated EV Charging

Heavy Cantilever Steel Bents with Integrated Cable Tray Routing

Commercial Fleet EV

EV Fast Charging

120+ Bay

Modular Expansion Capacity

180 km/h

Wind Load Engineering

Watertight

Patented EPDM Gasket System

25 yr

Structural Frame Warranty

Clean Energy Architecture

Engineered for Enterprise Fleets, Commercial Centers & EV Supercharging

Champion commercial solar carports deliver dual utility: premium shaded weather protection for employee and customer vehicles, and multi-megawatt on-site solar generation. Our patented interlocking gutter purlins guarantee 100% zero-leak water management without rubber deterioration.

☀️

Maximum Solar Harvesting Efficiency

Pre-engineered 10° and 15° tilt geometries optimized for maximum annual kilowatt-hour photovoltaic yield.

⚡

Integrated EV DC Fast Charging

Internal column cable raceways and foundation sleeves designed for rapid mounting of Level 2 and DC fast charging pedestals.

💧

Zero-Maintenance Galvanized Structure

Heavy Q355B H-beam steel with ISO 1461 hot-dip galvanizing delivers 30+ years of rust-free service in all climates.

Commercial Solar Carport with EV Charging Hub

Solar Engineering Matrix

Engineered Solar Carport Configurations (12m - 22m Span)

Explore pre-engineered single-row cantilever and dual-row T-frame solar canopy structures with verified photography.

12m (40ft)

100% Waterproof Solar · 33 kWp

12m (40ft) Span Dual-Row 10° Tilt T-Frame Carport (5-Bay Commercial Unit)

Engineered for 10 commercial vehicles with interlocking AL120x80 aluminum gutter purlins, Q355B hot-dip galvanized H200x200 columns, and integrated Level 2 EV charging raceways.

View Engineering Spec →

14m (46ft)

100% Waterproof Solar · 38 kWp

14m (46ft) Span Extended Dual-Row SUV & EV Hub Carport (5-Bay Commercial Unit)

Wider 14m bay footprint designed for fleet SUVs and light delivery vans with high-clearance 3.2m eaves and dual 150 kW DC fast-charging dispenser pedestals.

View Engineering Spec →

16m (52ft)

100% Waterproof Solar · 44 kWp

16m (52ft) Span Single-Row Cantilever Commercial Carport (5-Bay Corporate Unit)

Cantilever architectural profile with zero obstruction along the drive aisle, Q355B heavy tapered box columns, and Class A1 non-combustible bifacial PV array.

View Engineering Spec →

18m (60ft)

100% Waterproof Solar · 49 kWp

18m (60ft) Span Logistics Freight Fleet Solar Canopy (5-Bay Heavy Unit)

Heavy industrial logistics solar canopy providing 4.2m vertical clearance for freight trucks and Class 6 delivery vans with internal storm drainage channels.

View Engineering Spec →

22m (72ft)

100% Waterproof Solar · 61 kWp

22m (72ft) Span Heavy Articulated Electric Bus Solar Hub (5-Bay Modular Hub)

High-clearance 4.5m eave canopy engineered for 6 articulated municipal transit buses, featuring 61 kWp bifacial PV modules and heavy Q355B H350x350 columns.

View Engineering Spec →

Enterprise Value Proposition

Engineered Superiority Over Conventional Construction

Quantifiable lifecycle savings, extreme rapid mobilization, and zero operational downtime for heavy enterprise applications.

☀️

High-Density Renewable Generation & EV Hubs

Converts commercial parking acreage into clean power generating real estate with integrated EV charging infrastructure.

💧

100% Structural Waterproofing with EPDM Gaskets

Interlocking aluminum gutter purlins channel 100% of rainwater away from parking bays into perimeter downspouts.

🛡️

Q355B Hot-Dip Steel & 6005-T5 Aluminum Racking

Heavy structural columns engineered for ASCE 7-16 wind speeds up to 160 km/h with 30-year corrosion warranty.

Engineering Blueprints & CAD Section Details PE Stamped

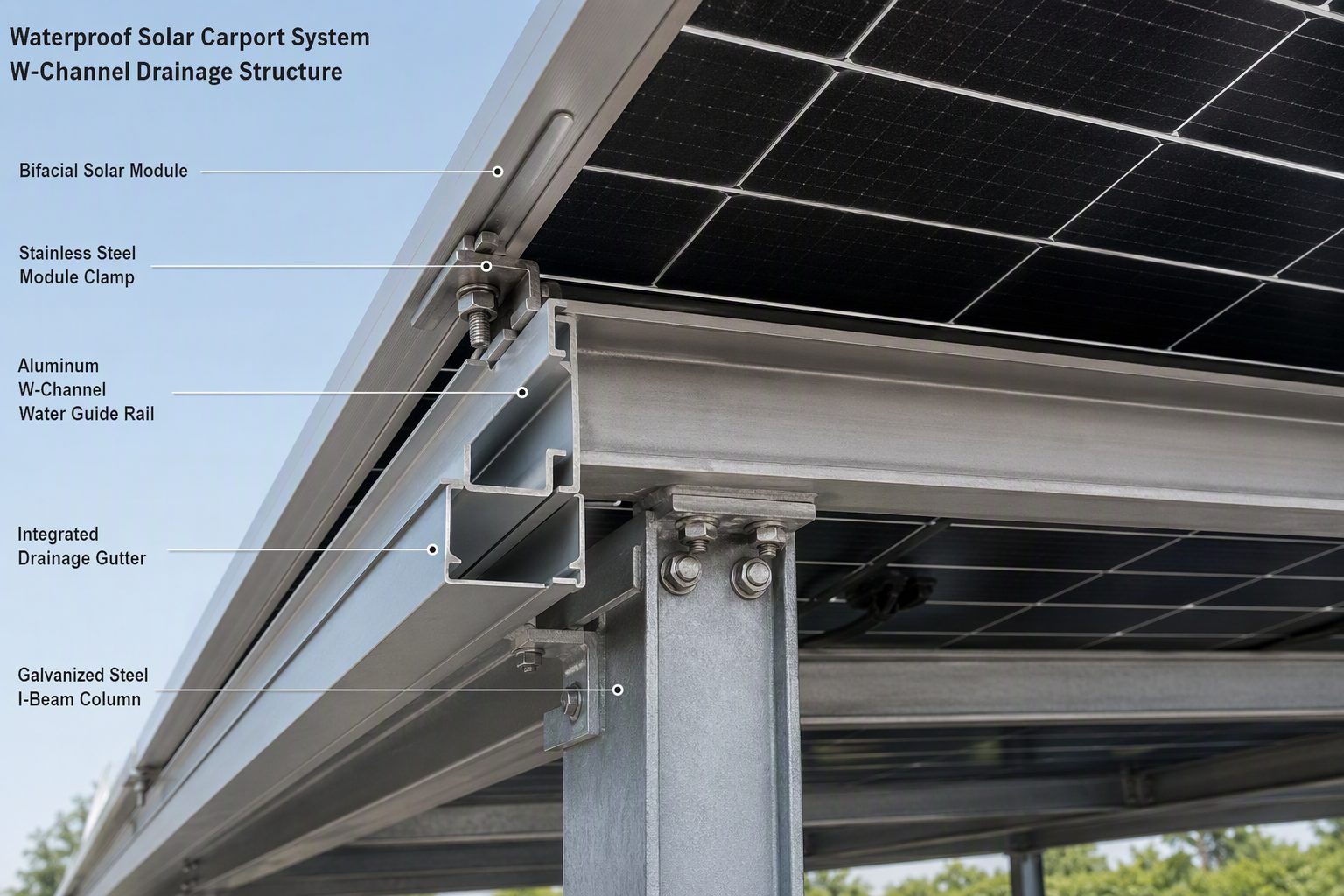

Structural Cross-Section & Connection Topology for Commercial Waterproof Solar Carports

Every Champion project is manufactured strictly from CNC-driven CAD/CAM fabrication packages. Structural nodes, chord junctions, baseplate anchor details, and membrane tensioning tracks are analyzed under finite element analysis (FEA) to confirm full compliance with international building codes.

Standard Engineering Parameters:

Clear Span Range: 12m to 22m (Dual-row and single-row cantilever layouts)
Structure Length: Unlimited (modular 2-vehicle to 50-vehicle parking bays)
Structural Columns: Q355B hot-dip galvanized H-beams (ISO 1461 ≥85μm)
Purlins & Racking: AL6005-T5 anodized aluminum with integrated waterproofing gutters
PV Module Compatibility: Framed and frameless bifacial monocrystalline solar panels
Wind & Snow Standards: ASCE 7-16 (160 km/h) & IBC 2021 compliant

Request Stamped CAD DWG / BIM File View Calculation Methodology →

Commercial Waterproof Solar Carports Engineering CAD Blueprint

DWG / REVIT / STEP 3D COMPLIANT

Material Science & Metallurgy

Architectural PVDF Membrane Engineering Matrix (750g – 1400g/m²)

Pre-stressed, anti-wicking, low-creep architectural textiles engineered with multi-layer PVDF/PVF lacquering for self-cleaning performance, UV shielding (UPF 50+), and permanent flame retardancy.

Areal Weight	Membrane Grade	Tensile Strength (Warp/Weft)	Tear Resistance	Light Transmittance	Temperature Range	Fire Retardancy Standard	Primary Industrial Role
750 g/m²	Architectural PVC/PVDF	3000 / 2800 N/5cm	380 / 350 N	15% Translucent	-30℃ ~ +70℃	DIN 4102 B1 / NFPA 701	Event Marquees, Canopy Sidewalls, Sailcloth Roofs
850 g/m²	Heavy Duty Blockout PVDF	4000 / 3500 N/5cm	500 / 450 N	0% (100% Blockout)	-40℃ ~ +70℃	DIN 4102 B1 / M2 / B-s2,d0	Standard Industrial Warehouses, Aluminum Clear Span
900 g/m²	Reinforced Industrial Grade	4500 / 4000 N/5cm	550 / 500 N	10% Translucent	-40℃ ~ +70℃	DIN 4102 B1 / NFPA 701	Container Mounted Shelters, Heavy Logistics Bays
1000 g/m²	Extreme Weather Mining Grade	5000 / 4500 N/5cm	620 / 580 N	8% Translucent	-45℃ ~ +75℃	DIN 4102 B1 / AS 1530	Mining Operations, Aggregate Domes, Salt Sheds
1100 g/m²	High-Pressure Air Dome Membrane	5500 / 5000 N/5cm	750 / 700 N	12% Diffuse Glow	-40℃ ~ +70℃	DIN 4102 B1 / EN 13501	Cable-Net Air Domes, Sports Arenas, Eco Storage
1200 g/m²	Permanent Architectural PVDF/PTFE	6000 / 5500 N/5cm	850 / 800 N	8% Controlled Lux	-50℃ ~ +80℃	Class A1 / DIN 4102 B1	Aviation Hangars, Permanent Terminals, Sports Stadiums
1400 g/m²	Ultra-Heavy Marine & Blast Shield	≥7000 / 6500 N/5cm	1100 / 1000 N	0% Total Solar Block	-50℃ ~ +85℃	DIN 4102 B1 / UL 94 V-0	Port Bulk Cargo, Military Fortified, Chemical Containment

✔ All membranes certified DIN 4102 B1, NFPA 701, and EN 13501-1 Class B-s2,d0

✔ 15-Year Pro-Rata Warranty with zero degradation under extreme coastal salt-spray

✔ Dual-layer thermal insulation liner options (R-12 to R-24) available across all weights

Commercial Fleets & Renewable Energy Infrastructure

Operational Commercial Solar Arrays & EV Charging Canopies

Engineered structural steel cantilever parking canopies with integrated commercial EV superchargers and watertight gasket systems.

Commercial EV Hub

High-Density Commercial Fleet EV Supercharging Canopy

Heavy Q355B cantilever steel framework supporting bifacial PV modules with integrated cable tray routing.

Single-Row Cantilever

Single-Row Cantilever Architecture for Easy Parking

Zero obstruction column design allowing door-swing clearance and unobstructed vehicle parking maneuvers.

Multi-Bay Canopy

Multi-Bay Commercial Parking Canopy with Watertight Gaskets

Patented EPDM watertight gasket purlins prevent rainwater leakage between PV panels into parking bays.

Field Construction Protocol

Engineered 8-Step Installation Methodology for Commercial Solar Carports

Rapid deployment methodology requiring zero on-site welding. Modular bolted connections reduce field erection schedules by up to 70% compared to conventional structural steel.

Topographical Survey & Grid Staking

Laser level and total station establish precise axial centerlines, column offsets, and elevation datums across the clear-span foundation grid.

Base Plate Anchoring & Torquing

Heavy cast-in base plates, chemical anchor studs (Grade 8.8), or helical earth anchors are drilled and torqued to specified kN pullout resistance.

Ground Truss Assembly & Lacing

Space-frame chord segments, web lacing members, and connection gusset plates are assembled and bolted flat on grade prior to hoisting.

Synchronized Crane Hoisting

Mobile cranes elevate paired structural truss arches into vertical position; temporary stabilizing guy wires maintain plumbness and stability.

Purlins, Struts & X-Cable Bracing

Longitudinal purlins, eaves struts, and pre-stretched galvanized X-bracing cables are torqued into place to form a rigid 3D spatial diaphragm.

Keder Membrane Track Tensioning

High-tenacity PVDF roof panels are pulled through integrated aluminum extrusion tracks and mechanically tensioned via ratchet catenary winches.

Endwalls, Megadoors & Flashings

Hard-wall panels, vertical-lifting Megadoors, motorized louvers, perimeter rainwater gutters, and architectural flashing trims are sealed.

FEA Pre-Stress Torque Audit & Signoff

Calibrated torque audit of all structural fasteners, ultrasonic weld verification, membrane pre-stress tensiometer inspection, and handover documentation.

Download Full Erection Manual & Stamped CAD Drawings →
