Rigid H-Beam Steel Frame PVDF Buildings (18m – 75m Span)

Manufactured with heavy Q355B solid-web tapered H-beam portal bents and architectural PVDF tensioned membrane roofs. Engineered for 5T–30T bridge cranes, extreme hurricane wind loads, and 4m concrete push-walls. 100% immune to fertilizer, potash, sulfur, and road salt corrosion.

✓ 5T–30T Bridge Crane Ready

✓ 100% Chemical & Salt Immune

✓ Concrete Push-Wall Mount

✓ ISO 1461 Hot-Dip Galvanized

Request Heavy Structural Proposal View Industrial Installations →

BULK FERTILIZER DEPOT · 40M CLEAR SPAN

Heavy Rigid H-Beam Steel Frame PVDF Bulk Storage Facility

Heavy Q355B Tapered Portal Bent on 3.5m Concrete Retaining Wall

Mining Workshop

Factory Pre-Assembly

75m

Clear Span Capability

30 Ton

Overhead Crane Capacity

100%

Chemical & Salt Immunity

25 yr

Structural Warranty

Product Introduction & Structural Steel Anatomy

Engineered for Bulk Fertilizer, Potash, Salt, Mining & Heavy Crane Facilities

For facilities storing highly corrosive commodities like fertilizer, road salt, sulfur, or bulk minerals, traditional steel-roofed buildings corrode and leak within 5 to 7 years. Champion Rigid H-Beam Fabric Buildings combine the immense structural strength of tapered H-beam portal bents with the chemical immunity of architectural PVDF membrane. Heavy bridge cranes (5T–30T) run directly on the H-beam crane girders while the natural daylighting membrane eliminates daytime artificial lighting costs.

🏗️

EOT Crane & Mezzanine Ready

Solid-web H-beam columns easily accommodate bracketed crane runways, catwalks, conveyors, and heavy industrial processing mezzanines.

☀️

Corrosion-Immune Membrane Enclosure

No exposed roof fasteners, screws, or light-gauge purlins to rust. Membrane textile is completely inert to chemical vapors and salt spray.

🛡️

Integrated Concrete Retaining Walls

Columns mount directly atop 2.0m–4.0m cast-in-place concrete push-walls, allowing front-end loaders to push bulk materials directly against walls.

Interior View of Heavy Rigid H-Beam Steel Frame PVDF Bulk Storage Facility

Structural Engineering Matrix

Standard Rigid H-Beam Fabric Building Configurations (18m - 60m+ Span)

Precision-engineered portal frame bents certified to international building codes.

18m (60ft)

Rigid Portal Frame · 1050 g/m²

18m (60ft) Rigid H-Beam Steel Frame PVDF Industrial Building - 30m Length

Q355B tapered H-beam steel portal frames with 1050 g/m² architectural PVDF tensioned membrane. Ideal for high-bay logistics and heavy fabrication workshops.

View Engineering Spec →

24m (80ft)

Rigid Portal Frame · 1100 g/m²

24m (80ft) Rigid H-Beam Steel Frame Bulk Storage Building - 45m Length

Heavy structural H-beam frames integrated with 2.5m concrete bunker push-walls. 1,080 m² fertilizer, aggregate, and agricultural grain storage facility.

View Engineering Spec →

30m (100ft)

Rigid Portal Frame · 1200 g/m²

30m (100ft) Rigid H-Beam Clear-Span Port Terminal Warehouse - 60m Length

1,800 m² column-free clear floor with 8.5m eave clearance for heavy overhead gantry crane integration and corrosive marine bulk salt storage.

View Engineering Spec →

40m (131ft)

Rigid Portal Frame · 1200 g/m²

40m (131ft) Heavy Industrial H-Beam Steel Mining Maintenance Facility - 75m Length

Heavy Q355B welded tapered portal frames designed for 20-ton overhead EOT cranes and 180 km/h typhoon resistance over 3,000 m² heavy earthmover workshop.

View Engineering Spec →

50m (164ft)

Rigid Portal Frame · 1400 g/m²

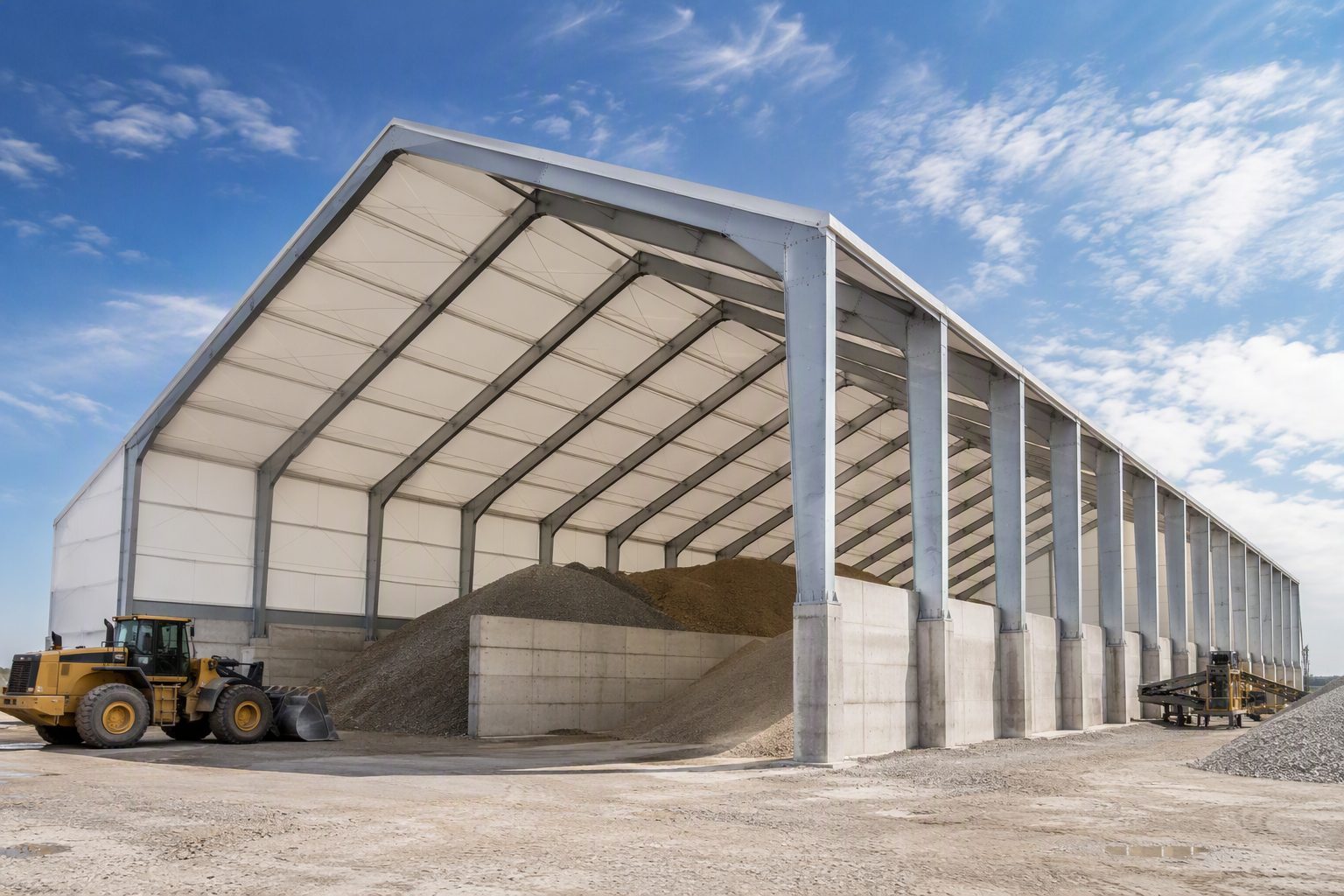

50m (164ft) Mega H-Beam Steel Frame Environmental Stockpile Enclosure - 100m Length

5,000 m² zero-emission bulk mineral and coal stockpile enclosure featuring heavy H-beam bents and 1400 g/m² self-cleaning flame-retardant PVDF membrane.

View Engineering Spec →

60m (197ft)

Rigid Portal Frame · 1400 g/m²

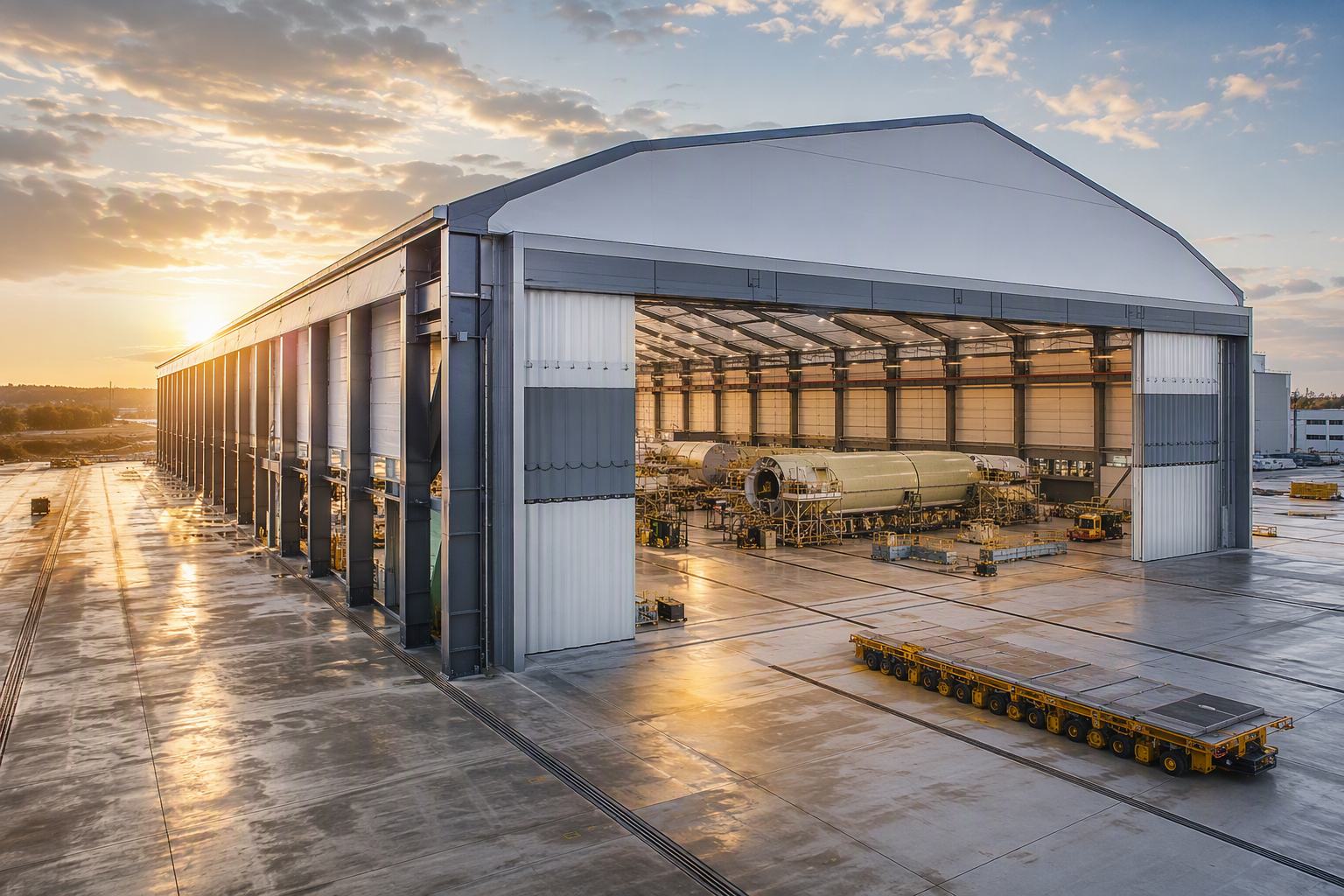

60m (197ft) Super-Span Rigid H-Beam Aviation & Rail MRO Complex - 120m Length

7,200 m² mega-span structural H-beam facility with 14m apex clearance and dual fabric Megadoor integration, certified to ASCE 7-16 Category III.

View Engineering Spec →

Enterprise Value Proposition

Engineered Superiority Over Conventional Construction

Quantifiable lifecycle savings, extreme rapid mobilization, and zero operational downtime for heavy enterprise applications.

🏗️

Heavy Rigid H-Beam Portal Frames (Q355B)

Combines the proven load-carrying capacity of structural steel H-beams with overhead bridge crane (5T–30T) capability and extreme wind resistance.

☀️

High-Tensile Architectural PVDF Enclosure

1050g–1400g/m² PVDF membrane delivers shadow-free natural daylighting, self-cleaning dust shedding, and permanent non-combustible fire safety.

🛡️

Total Chemical, Salt & Fertilizer Corrosion Immunity

Eliminates corroding metal purlins and screws. Membrane roof is 100% immune to fertilizer, potash, sulfur, and marine coastal salt oxidation.

Material Science & Metallurgy

Architectural PVDF Membrane Engineering Matrix (750g – 1400g/m²)

Pre-stressed, anti-wicking, low-creep architectural textiles engineered with multi-layer PVDF/PVF lacquering for self-cleaning performance, UV shielding (UPF 50+), and permanent flame retardancy.

Areal Weight	Membrane Grade	Tensile Strength (Warp/Weft)	Tear Resistance	Light Transmittance	Temperature Range	Fire Retardancy Standard	Primary Industrial Role
750 g/m²	Architectural PVC/PVDF	3000 / 2800 N/5cm	380 / 350 N	15% Translucent	-30℃ ~ +70℃	DIN 4102 B1 / NFPA 701	Event Marquees, Canopy Sidewalls, Sailcloth Roofs
850 g/m²	Heavy Duty Blockout PVDF	4000 / 3500 N/5cm	500 / 450 N	0% (100% Blockout)	-40℃ ~ +70℃	DIN 4102 B1 / M2 / B-s2,d0	Standard Industrial Warehouses, Aluminum Clear Span
900 g/m²	Reinforced Industrial Grade	4500 / 4000 N/5cm	550 / 500 N	10% Translucent	-40℃ ~ +70℃	DIN 4102 B1 / NFPA 701	Container Mounted Shelters, Heavy Logistics Bays
1000 g/m²	Extreme Weather Mining Grade	5000 / 4500 N/5cm	620 / 580 N	8% Translucent	-45℃ ~ +75℃	DIN 4102 B1 / AS 1530	Mining Operations, Aggregate Domes, Salt Sheds
1100 g/m²	High-Pressure Air Dome Membrane	5500 / 5000 N/5cm	750 / 700 N	12% Diffuse Glow	-40℃ ~ +70℃	DIN 4102 B1 / EN 13501	Cable-Net Air Domes, Sports Arenas, Eco Storage
1200 g/m²	Permanent Architectural PVDF/PTFE	6000 / 5500 N/5cm	850 / 800 N	8% Controlled Lux	-50℃ ~ +80℃	Class A1 / DIN 4102 B1	Aviation Hangars, Permanent Terminals, Sports Stadiums
1400 g/m²	Ultra-Heavy Marine & Blast Shield	≥7000 / 6500 N/5cm	1100 / 1000 N	0% Total Solar Block	-50℃ ~ +85℃	DIN 4102 B1 / UL 94 V-0	Port Bulk Cargo, Military Fortified, Chemical Containment

✔ All membranes certified DIN 4102 B1, NFPA 701, and EN 13501-1 Class B-s2,d0

✔ 15-Year Pro-Rata Warranty with zero degradation under extreme coastal salt-spray

✔ Dual-layer thermal insulation liner options (R-12 to R-24) available across all weights

Heavy Industrial Facilities & Verified Track Record

Operational Bulk Storage & Heavy Industrial Facilities

Heavy Q355B solid-web tapered H-beam portal bents with concrete push-walls and architectural PVDF membrane roofs.

Heavy Portal Bent

Industrial Solid-Web Portal Frame with PVDF Roof

Heavy Q355B tapered H-beam portal bents providing immense structural load capacity and complete chemical corrosion immunity.

Bulk Aggregate Hall

Interior Bulk Aggregate Storage with Push-Walls

Columns mounted directly atop 3.5m concrete push-walls, allowing front-end loaders to work directly against walls.

Port Chemical Depot

Rotterdam Port Bulk Potash Storage Facility

100% chemically inert clear-span storage completely immune to fertilizer, potash, sulfur, and salt corrosion.

Field Construction Protocol

Engineered 8-Step Installation Methodology for Rigid H-Beam Steel Frame PVDF Buildings

Rapid deployment methodology requiring zero on-site welding. Modular bolted connections reduce field erection schedules by up to 70% compared to conventional structural steel.

Topographical Survey & Grid Staking

Laser level and total station establish precise axial centerlines, column offsets, and elevation datums across the clear-span foundation grid.

Base Plate Anchoring & Torquing

Heavy cast-in base plates, chemical anchor studs (Grade 8.8), or helical earth anchors are drilled and torqued to specified kN pullout resistance.

Ground Truss Assembly & Lacing

Space-frame chord segments, web lacing members, and connection gusset plates are assembled and bolted flat on grade prior to hoisting.

Synchronized Crane Hoisting

Mobile cranes elevate paired structural truss arches into vertical position; temporary stabilizing guy wires maintain plumbness and stability.

Purlins, Struts & X-Cable Bracing

Longitudinal purlins, eaves struts, and pre-stretched galvanized X-bracing cables are torqued into place to form a rigid 3D spatial diaphragm.

Keder Membrane Track Tensioning

High-tenacity PVDF roof panels are pulled through integrated aluminum extrusion tracks and mechanically tensioned via ratchet catenary winches.

Endwalls, Megadoors & Flashings

Hard-wall panels, vertical-lifting Megadoors, motorized louvers, perimeter rainwater gutters, and architectural flashing trims are sealed.

FEA Pre-Stress Torque Audit & Signoff

Calibrated torque audit of all structural fasteners, ultrasonic weld verification, membrane pre-stress tensiometer inspection, and handover documentation.

Download Full Erection Manual & Stamped CAD Drawings →

Heavy Industrial Metallurgy

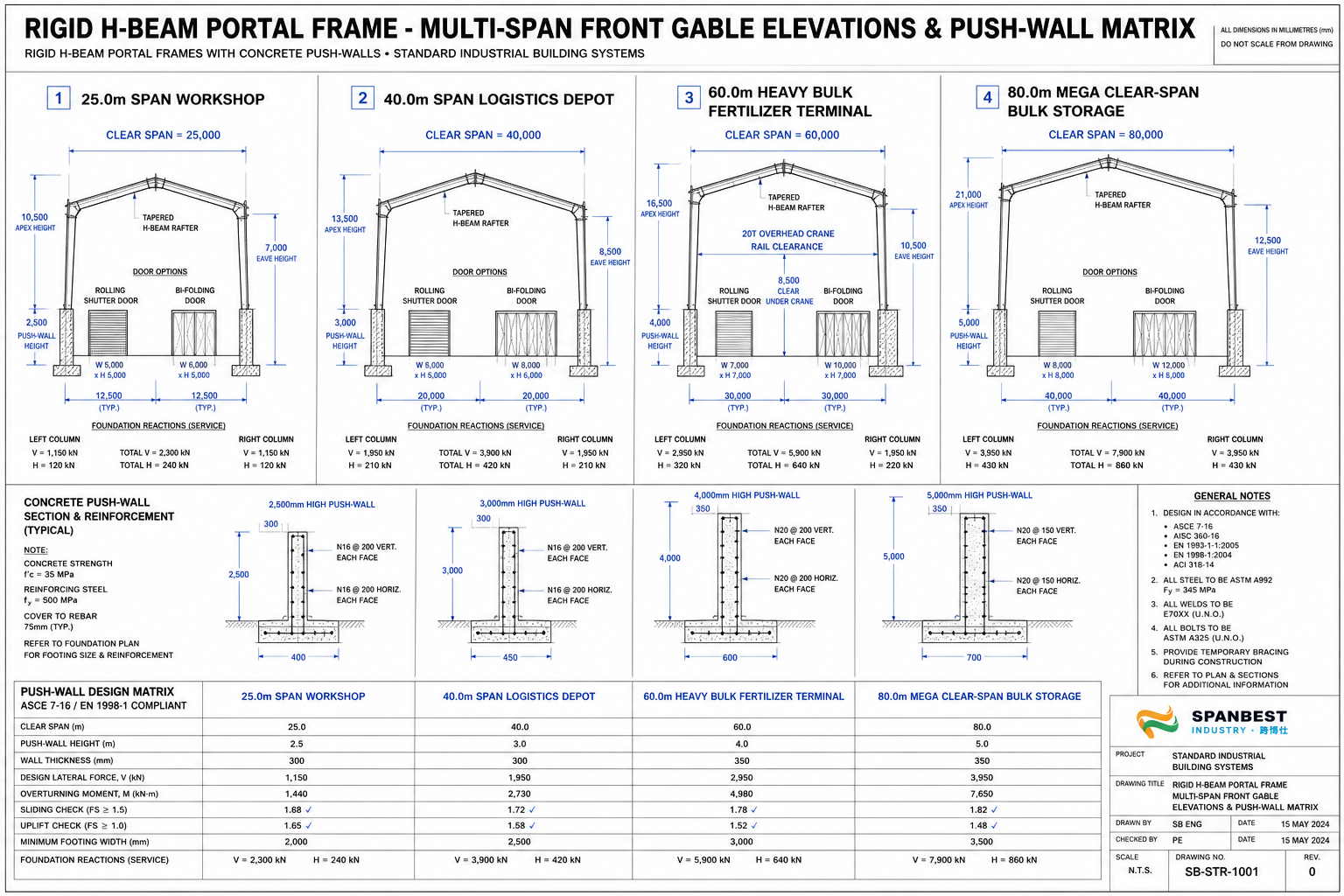

Rigid H-Beam Multi-Span Front Gable Elevations & Push-Wall Heights (25m – 80m)

Parametric cross-section elevations detailing tapered Q355B H-beam rafters, integrated concrete retaining push-wall heights (2.5m to 5.0m), and 5T–30T crane rail clearances.

Rigid H-Beam Multi-Span Front Gable Elevations and Push-Wall Matrix CAD Drawing

25m Industrial Bay: 2.5m cast push-wall, 10.5m apex, 5T crane runway beam.

40m Logistics Depot: 3.0m push-wall, 13.5m apex, dual bi-parting industrial doors.

60m Fertilizer Terminal: 4.0m heavy push-wall, 16.5m apex, 20T crane clearance.

80m Mega Bulk Vault: 5.0m fortified push-wall, 21.0m apex, Cat 988K loader envelope.

Operational Deployments

Real-World Field Application Scenarios

Verified real-world engineering installations showing primary structural performance, operational clearances, and customized customer workflows.

55m Bulk Fertilizer Terminal on 4m Push-Walls

Heavy Q355B portal frames with 4m reinforced concrete retaining walls.

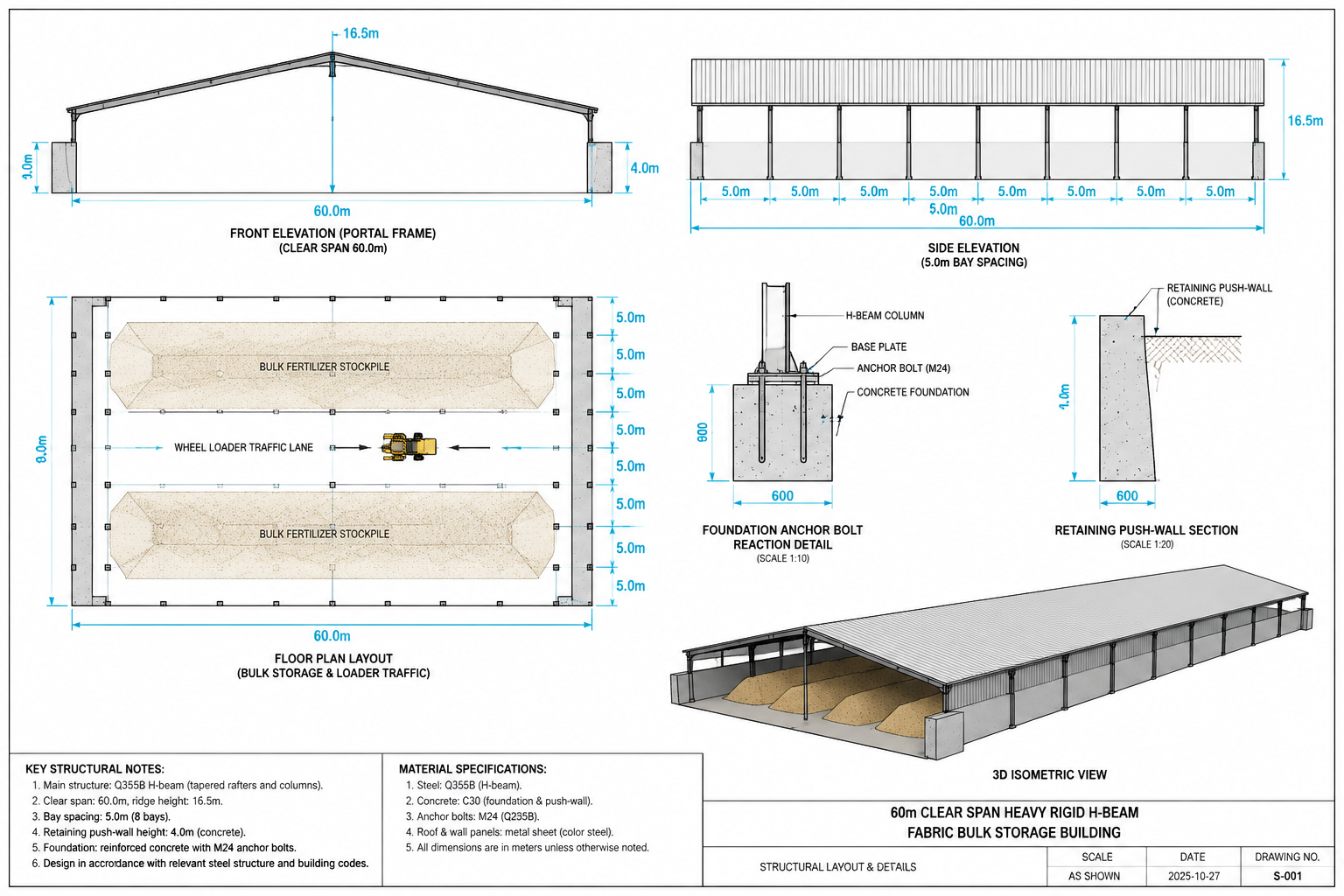

60m Heavy Crane-Ready Industrial Workshop

Integrated 20T overhead EOT bridge crane runway beams.

Port Cargo Stevedoring & Chemical Depots

Full corrosive dust containment and salt-spray resistance.

FIELD PROJECT SHOWCASE · 10 REAL SCENES

Rigid H-Beam PVDF Fabric Buildings — Verified Field Project Gallery

🔍 Click any project image below to inspect full-screen high-resolution photo

SCENE #01

🔍 ENLARGE

Rigid H-Beam PVDF Industrial Project 01

Tapered rigid H-beam portal frame supporting a tensioned architectural membrane roof.

✔ Verified Operating Project

SCENE #02

🔍 ENLARGE

Rigid H-Beam PVDF Industrial Project 02

Tapered rigid H-beam portal frame supporting a tensioned architectural membrane roof.

✔ Verified Operating Project

SCENE #03

🔍 ENLARGE

Rigid H-Beam PVDF Industrial Project 03

Tapered rigid H-beam portal frame supporting a tensioned architectural membrane roof.

✔ Verified Operating Project

SCENE #04

🔍 ENLARGE

Rigid H-Beam PVDF Industrial Project 04

Tapered rigid H-beam portal frame supporting a tensioned architectural membrane roof.

✔ Verified Operating Project

SCENE #05

🔍 ENLARGE

Port Bulk-Cargo H-Beam Storage Shed

Rigid H-beam portal building for bulk handling at a marine terminal.

✔ Verified Operating Project

SCENE #06

🔍 ENLARGE

Rigid H-Beam PVDF Industrial Project 06

Tapered rigid H-beam portal frame supporting a tensioned architectural membrane roof.

✔ Verified Operating Project

SCENE #07

🔍 ENLARGE

Bridge-Crane Heavy Steel Workshop

Rigid H-beam frame carrying an overhead bridge crane.

✔ Verified Operating Project

Rigid H-Beam PVDF Fabric Buildings — Distinct Field View 08

SCENE #08

🔍 ENLARGE

Rigid H-Beam PVDF Fabric Buildings — Distinct Field View 08

Category-specific field view for Rigid H-Beam PVDF Fabric Buildings; retained as a distinct non-duplicate asset.

✔ Verified Operating Project

Rigid H-Beam PVDF Fabric Buildings — Distinct Field View 09

SCENE #09

🔍 ENLARGE

Rigid H-Beam PVDF Fabric Buildings — Distinct Field View 09

Category-specific field view for Rigid H-Beam PVDF Fabric Buildings; retained as a distinct non-duplicate asset.

✔ Verified Operating Project

Fertilizer Storage with Concrete Push Walls

SCENE #10

🔍 ENLARGE

Fertilizer Storage with Concrete Push Walls

H-beam portal building with loader-resistant concrete retaining walls.

✔ Verified Operating Project

ENGINEERING DRAWING VAULT · 20 BLUEPRINTS

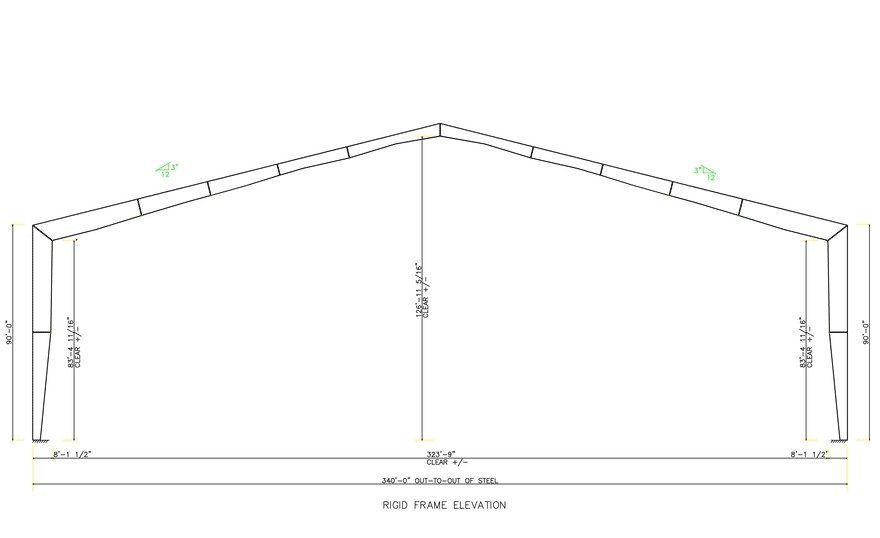

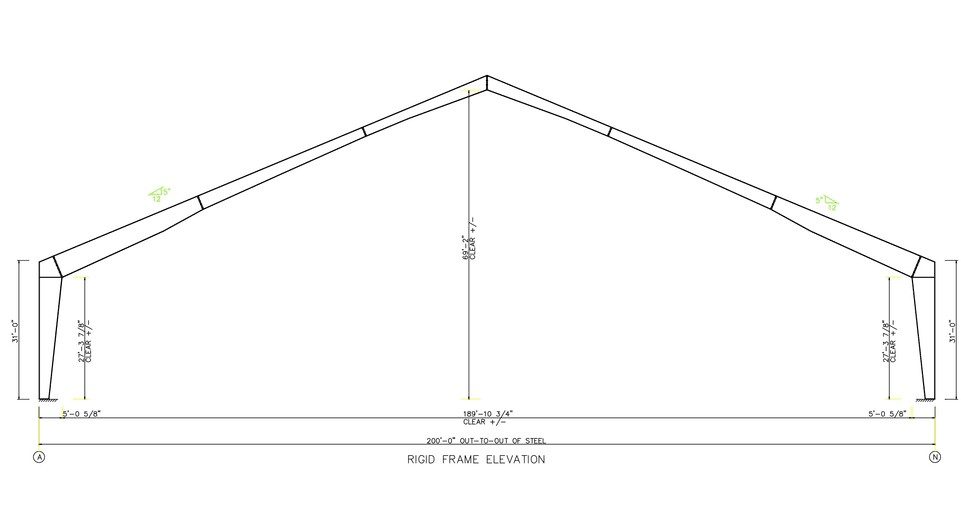

Rigid H-Beam PVDF Fabric Buildings — 20 Certified 2D CAD Blueprints & PDFs

Includes 2D Elevations, Bay Spacings, Foundation Load Tables & Title Blocks
