1. Aerodynamic Velocity Pressure & Wind Uplift Mechanics
Large-span tension fabric structures exhibit distinct aerodynamic response characteristics compared to traditional rectangular pre-engineered metal buildings (PEMB). Because arch and curved barrel-vault profiles create complex pressure distributions—combining positive windward stagnation with high negative leeward suction and apex vortex shedding—accurate calculation of the velocity pressure ($q_z$) is critical to avoiding localized membrane tearing or arch truss buckling.
Under **ASCE 7-16 Chapter 26 & 27**, dynamic velocity pressure is formulated as:
$$q_z = 0.613 \cdot K_z \cdot K_{zt} \cdot K_d \cdot K_e \cdot V^2 \quad (\text{N/m}^2)$$
Where:
- $V$ is the basic 3-second gust design wind speed (m/s) according to Risk Category (typically Risk Category II or III for industrial manufacturing shelters).
- $K_z$ is the velocity pressure exposure coefficient evaluated at eave and apex elevations.
- $K_{zt}$ is the topographic factor accounting for escarpments, hills, or ridgelines common in remote mining extraction sites.
- $K_d$ is the wind directionality factor (0.85 for curved arched buildings).
- $K_e$ is the ground elevation factor correcting for reduced air density at high-altitude mines (e.g. Chile's Atacama at 4,000m elevation).
In contrast, **Eurocode 1 (EN 1991-1-4)** utilizes a 10-minute mean wind velocity ($v_b$) combined with peak velocity pressure $q_p(z)$, accounting for turbulence intensity $I_v(z)$:
$$q_p(z) = [1 + 7 I_v(z)] \cdot \frac{1}{2} \rho v_m(z)^2$$

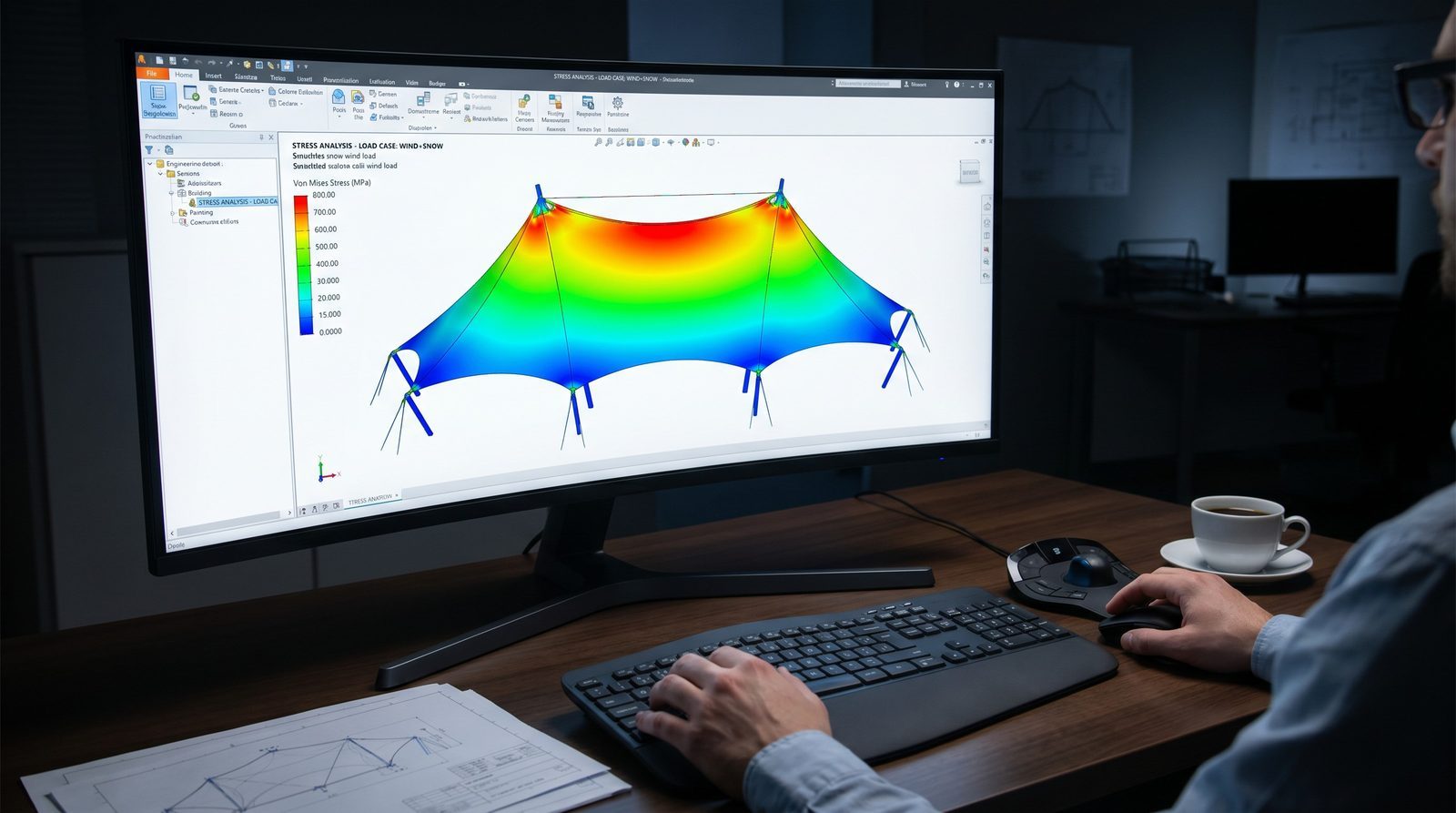

At Champion, our engineering division runs **3D Finite Element Analysis (FEA) simulations in ANSYS and SAP2000** for every clear-span geometry exceeding 25 meters, verifying that external pressure coefficients ($C_p$) properly map localized suction peaks over the ridge and eaves.
2. Ground Snow Load and Asymmetric Snow Drift Accumulation
In high-latitude and mountainous regions (Canada, Northern Europe, Central Asia), unbalanced snow drift is historically the leading cause of structural failure in generic commodity shelters. Curved roof geometries cause thermal slide-off on solar-facing pitches while leeward slopes trap deep snow cornices.
**Key design factors in our engineering protocols:**
1. **Balanced Snow Load (sf):** Evaluated using thermal factor Ct = 1.0 (or 1.1 for unheated cold storage) and exposure factor Ce.
2. **Unbalanced Leeward Drift:** ASCE 7-16 Section 7.6 mandates asymmetric drift loading where snow surcharge reaches up to 2.0 × pg along the leeward quarter-span. Champion double-truss chords are sized with sufficient section modulus (Zx) to resist combined bending moments (Mu) and axial thrust (Pu) under these asymmetric drifts.
3. **Membrane Tension Pre-Stress:** We specify minimum 950 g/m² PVDF fabric tensioned biaxially to 3.5–5.0 kN/m to eliminate roof ponding and prevent local membrane pocketing under severe snowmelt.
3. Allowable Truss Deflection & Buckling Safety Margins
Standard industry tent vendors frequently design to liberal deflection ratios (such as L/50 or L/75), resulting in excessive sway, binding crane rails, and zipper seam stress under gusty winds.
Champion mandates rigorous heavy industrial deflection criteria:
- **Lateral Drift at Eave:** Δ_drift ≤ H / 150 under 50-year mean recurrence interval (MRI) wind.
- **Apex Vertical Deflection:** Δ_apex ≤ L / 180 under full combined dead + unbalanced snow load.
- **Chord Slenderness Ratio:** Web member slenderness λ ≤ 150; main compression chords λ ≤ 100 using Q355B high-yield structural tubing (minimum yield strength fy = 355 MPa).
