Rail & Multimodal Logistics

Railway Intermodal Container Cross-Docking & Transshipment Canopies

Spans rail sidings and truck transfer lanes, allowing reach stackers to transfer containers between freight trains and semi-trailers in driving rain.

Request Solution Proposal All 50 Industrial Solutions →
Industry Operational Demands

Engineered for High-Throughput & Harsh Climates

Traditional pre-engineered metal buildings suffer from long lead times, massive foundation costs, and rapid corrosion in corrosive environments. Champion clear-span structures solve these challenges with rapid assembly, zero interior columns, and ISO 1461 hot-dip galvanizing.

Conventional Building Bottlenecks

  • ✘ Rain damage claims on open rail transshipments
  • ✘ Reach-stacker counterweights damage low building columns

The Champion Engineered Solution

  • ✔ Wide 50m clear span allows unrestricted reach stacker boom swings
  • ✔ High clearance eliminates vehicle collision risks

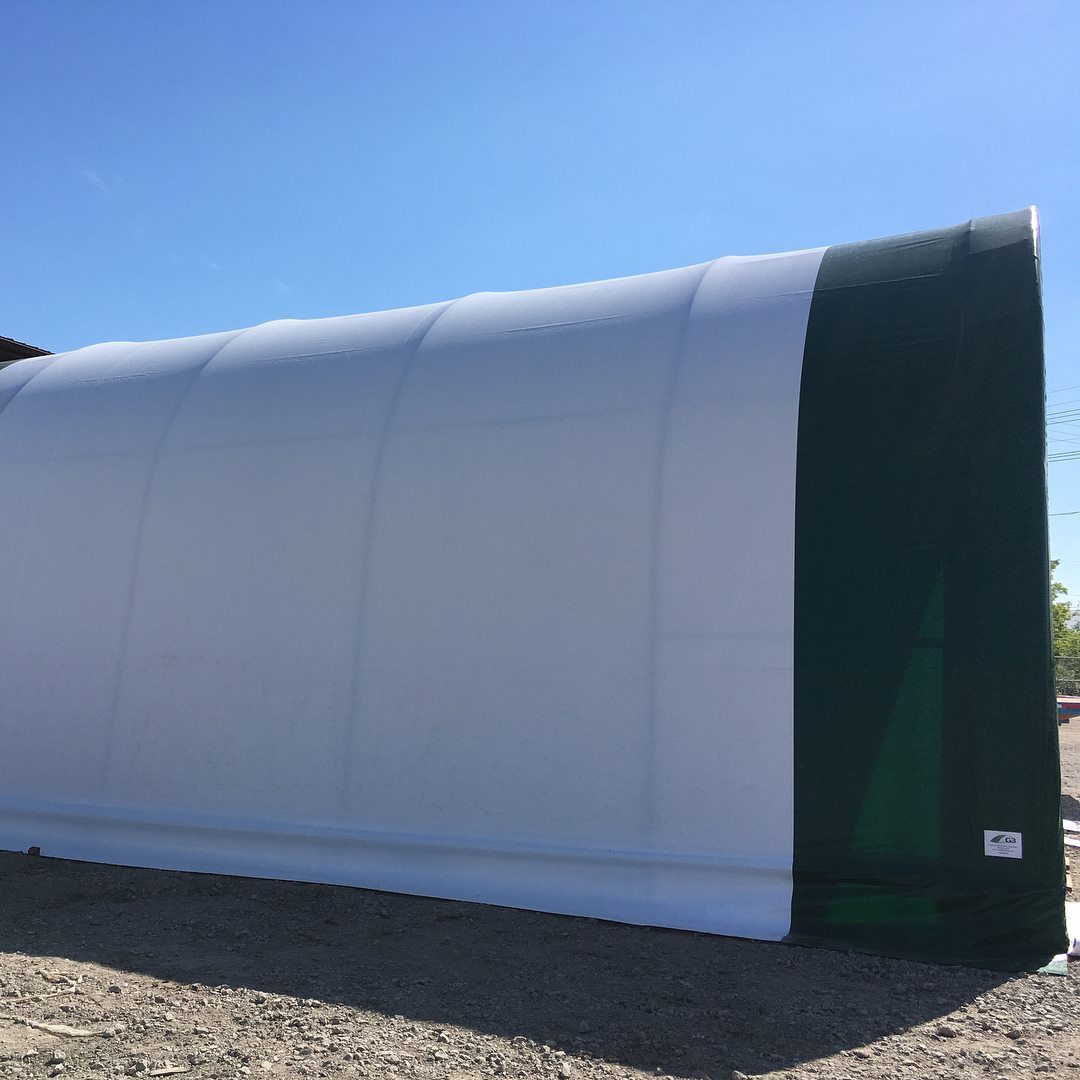

Railway Intermodal Container Cross-Docking & Transshipment Canopies

Recommended System Parameters

Recommended Span: 30m – 55m Clear Span
Clearance Height: 8.5m – 13.0m (Allows reach-stackers and double-stack container wellcars)
Structural Frame: Heavy Tubular Lattice Arch with High Sidewall Clearance
Membrane Spec: 900 g/m² Translucent Architectural PVC/PVDF
Wind & Snow: Wind 160 km/h / Snow 2.5 kN/m²

Consult Our Structural Engineers on Railway Intermodal Container Cross-Docking & Transshipment Canopies

We deliver site-specific structural calculations, foundation loads, and 3D architectural models for rapid permit approval.
