1. The Barrier Coating Fallacy of Paint in Remote Operations
Many lower-tier building suppliers coat structural tubing with spray paint, powder coating, or thin electroplating (often less than 15 microns thick). In theory, paint provides a barrier between steel and moisture. In reality, during ocean freight, rough gravel transport, and on-site bolt torquing, paint chips inevitably occur.
Once oxygen and moisture penetrate a paint scratch, **undercut corrosion** rapidly spreads beneath the paint layer. Within 12 to 24 months in a coastal port or sulfur-rich mining site, severe flaking, rust streaking, and wall thinning compromise structural safety.
2. Metallurgical Alloy Layers of Deep Hot-Dip Galvanizing

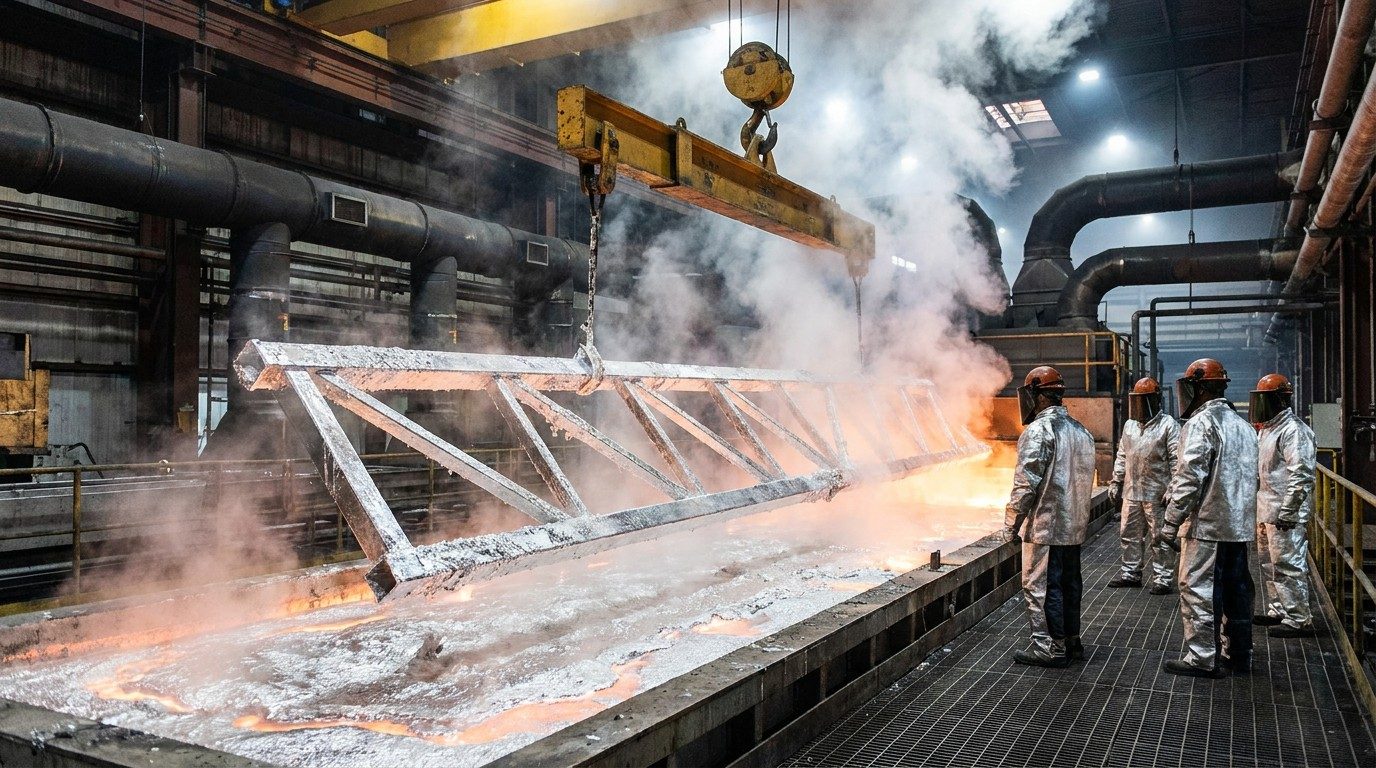

Champion operates an in-house deep hot-dip galvanizing facility in Hunan. After thorough pickling and fluxing, steel trusses are immersed in a 450°C molten zinc kettle. Unlike paint, molten zinc reacts chemically with iron to form four distinct metallurgical alloy layers:
- **Gamma Layer (75% Fe, 25% Zn):** Micro-hard alloy layer bonded directly to the base steel.
- **Delta Layer (90% Zn, 10% Fe):** Hard crystalline layer providing immense abrasion resistance against windblown gravel.
- **Zeta Layer (94% Zn, 6% Fe):** Columnar alloy phase harder than structural steel itself (Diamond Pyramid Hardness > 200 DPH).
- **Eta Layer (100% Zn):** Ductile pure zinc outer shell absorbing impact.
Because these layers form a true metallurgical bond rather than surface adhesion, hot-dip galvanizing cannot be chipped, peeled, or stripped by physical impact.
3. Complete Internal Tube Protection and Sacrificial Cathodic Action
Hollow structural steel pipes are particularly vulnerable to internal condensation rust that eats through tube walls from the inside out.
Because Champion fully immerses prefabricated trusses into molten zinc, **100% of the interior tube walls receive the same uniform ≥85μm zinc coating as the exterior surface**. Furthermore, zinc provides **sacrificial cathodic protection**: if a scratch exposes bare steel, the surrounding zinc sacrifices itself galvanically to protect the iron, sealing scratches naturally with protective zinc patina.
